Lincoln
›
2011
›
MKS Base, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector Views
›
Audio Digital Signal Processing Module Connector
›
Audio Digital Signal Processing Module Connector End View - C4326B
Audio Digital Signal Processing Module Connector End View - C4326B

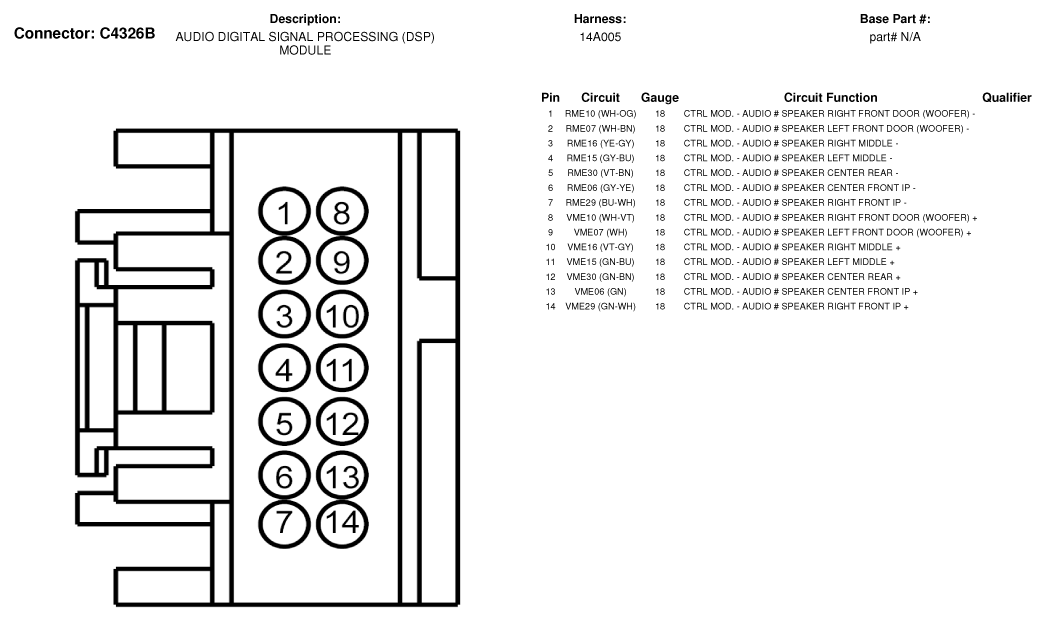

Fig 1: Audio Digital Signal Processing Module Connector End View (C4326B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
