Lincoln
›
2011
›
MKS Base, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector Views
›
Cruise Control Module Connector - C1582
Cruise Control Module Connector - C1582

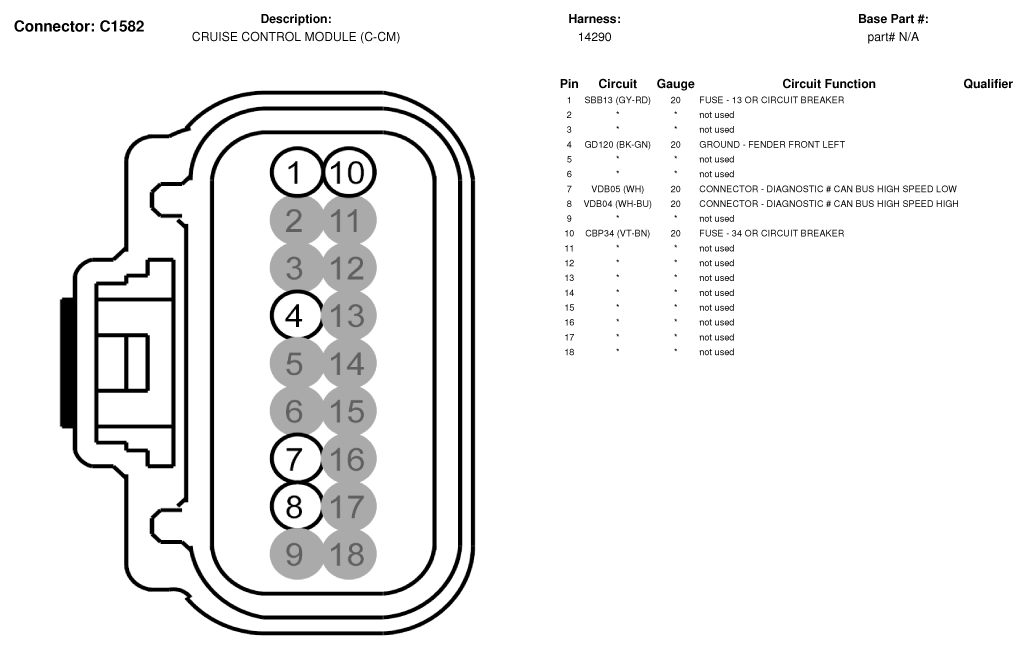

Fig 1: Cruise Control Module Connector End View (C1582)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
