DATC HVAC Module Connector End View - C228A

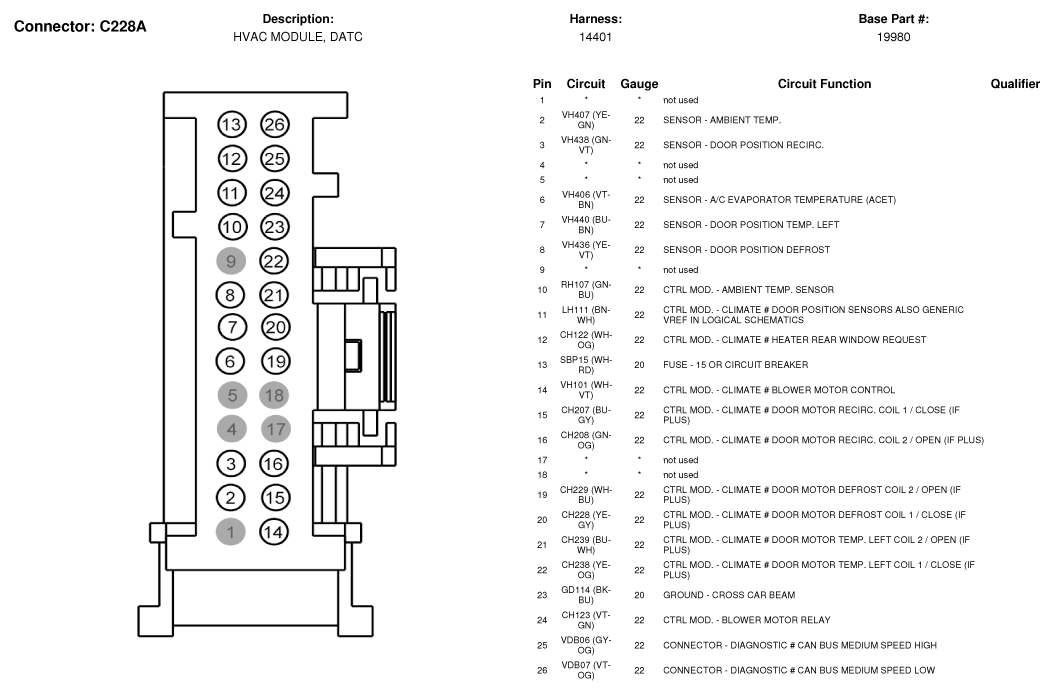

Fig 1: DATC HVAC Module Connector End View (C228A)
G07329805Courtesy of FORD MOTOR CO.
