Driver Seat Module Connector End View - C341A

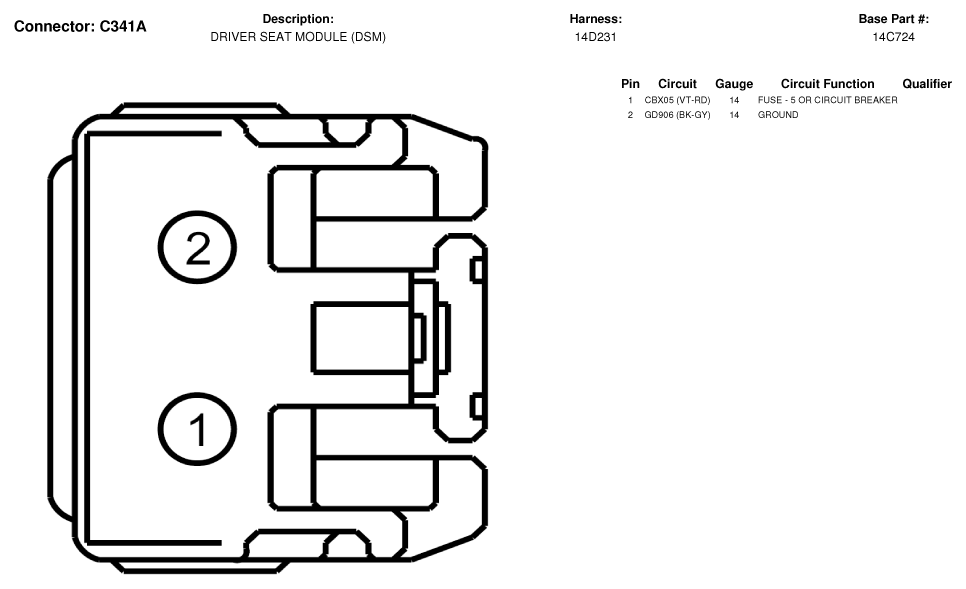

Fig 1: Driver Seat Module Connector End View (C341A)
G07329861Courtesy of FORD MOTOR CO.
