Home › Lincoln › 2011 › MKS Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Driver Seat Module Connector › Driver Seat Module Connector End View - C341C

Driver Seat Module Connector End View - C341C

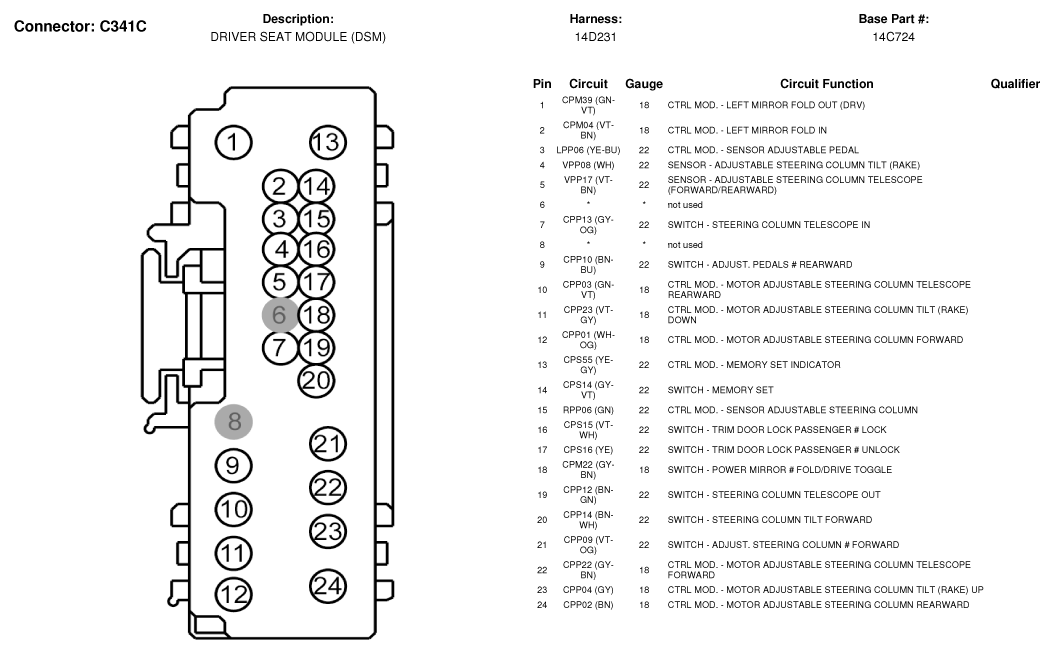

Fig 1: Driver Seat Module Connector End View (C341C)
G07329863Courtesy of FORD MOTOR CO.
