Dual Climate Controlled Seat Module Connector End View - C3265B

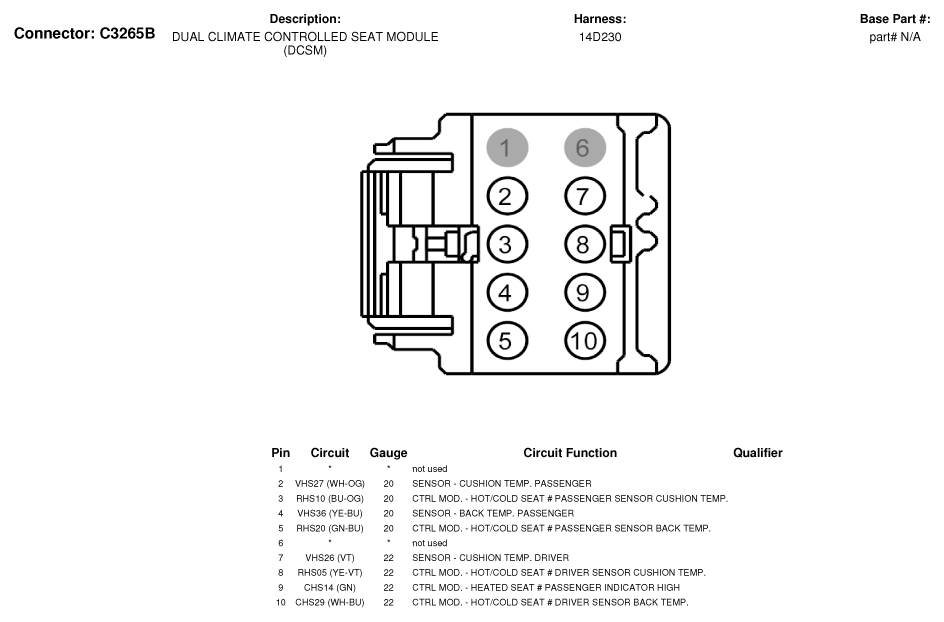

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3265B)
G07330092Courtesy of FORD MOTOR CO.
