Front Control Interface Module Connector
›
Front Control Interface Module Connector End View - C2403
Front Control Interface Module Connector End View - C2403

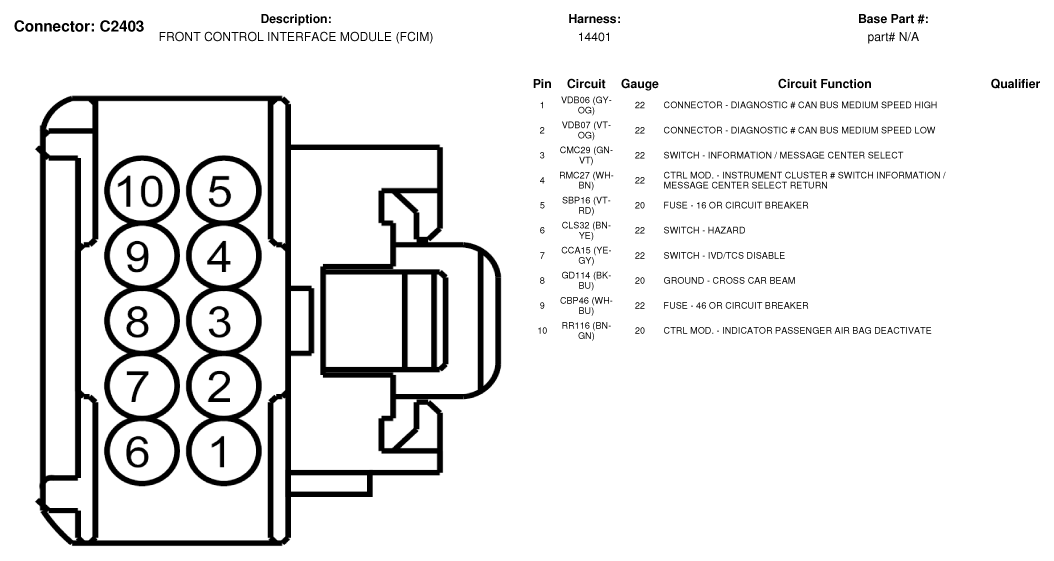

Fig 1: Front Control Interface Module Connector End View (C2403)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
