Fuel Level Sensor Connector - C3270
Fuel Level Sensor Connector - C3270

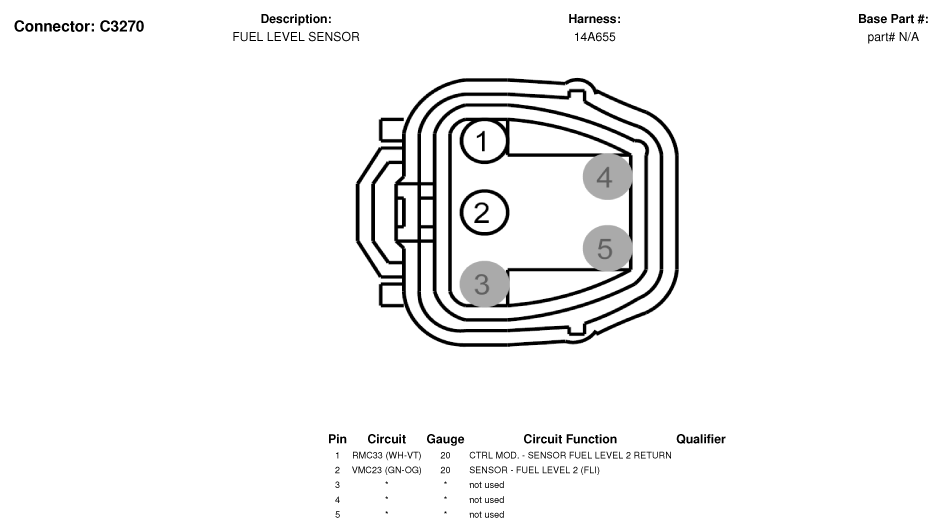

Fig 1: Fuel Level Sensor Connector End View (C3270)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
