Global Positioning System Module Connector - C2300

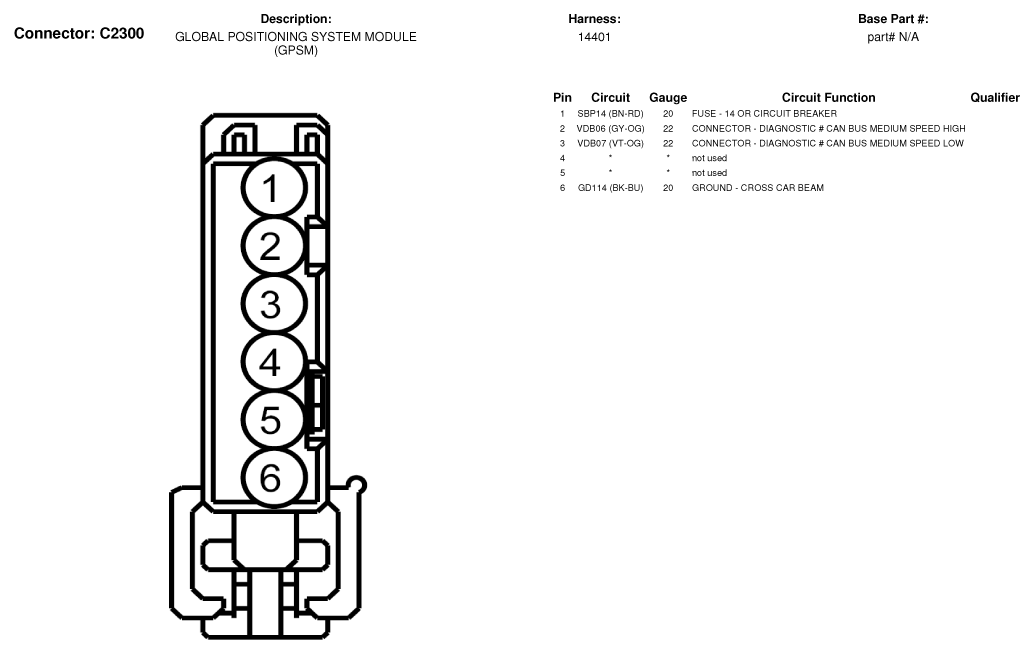

Fig 1: Global Positioning System Module Connector End View (C2300)
G07330035Courtesy of FORD MOTOR CO.
