Headlamp Control Module 2 Connector - C9115

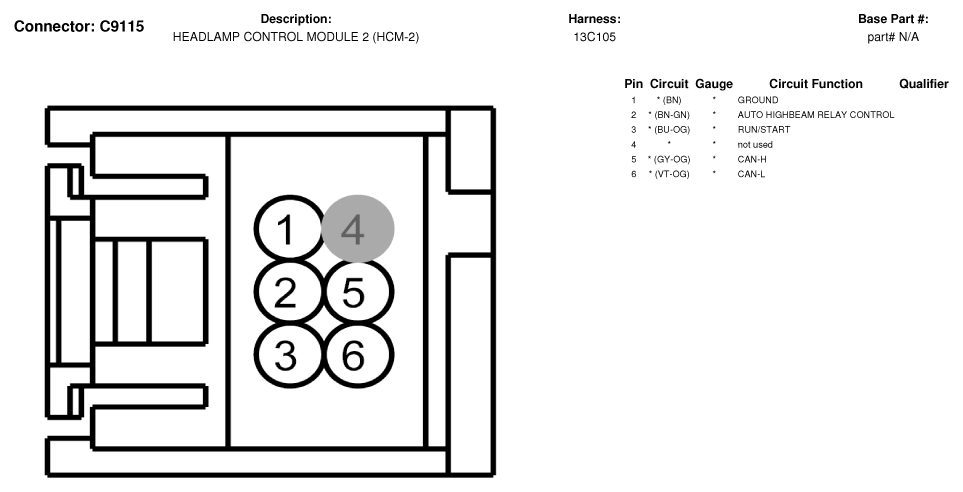

Fig 1: Headlamp Control Module 2 Connector End View (C9115)
G07330131Courtesy of FORD MOTOR CO.
