Interior Lighting Control Module Connector - C2411

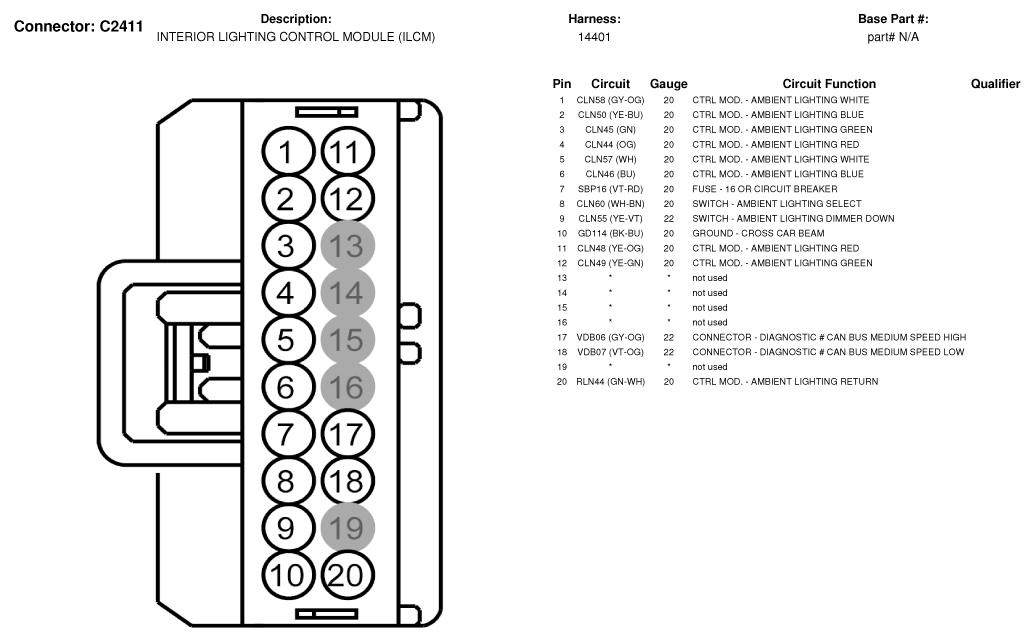

Fig 1: Interior Lighting Control Module Connector End View (C2411)
G07330047Courtesy of FORD MOTOR CO.
