Occupant Classification Sensor 3 Connector - C3330
Occupant Classification Sensor 3 Connector - C3330

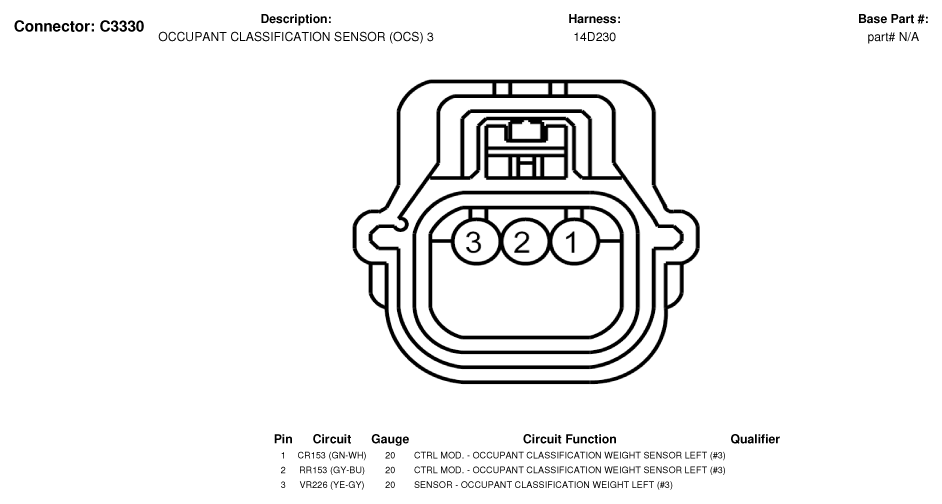

Fig 1: Occupant Classification Sensor 3 Connector End View (C3330)
Courtesy of FORD MOTOR CO.
