Power Steering Control Module Connector
›
Power Steering Control Module Connector End View - C1463A
Power Steering Control Module Connector End View - C1463A

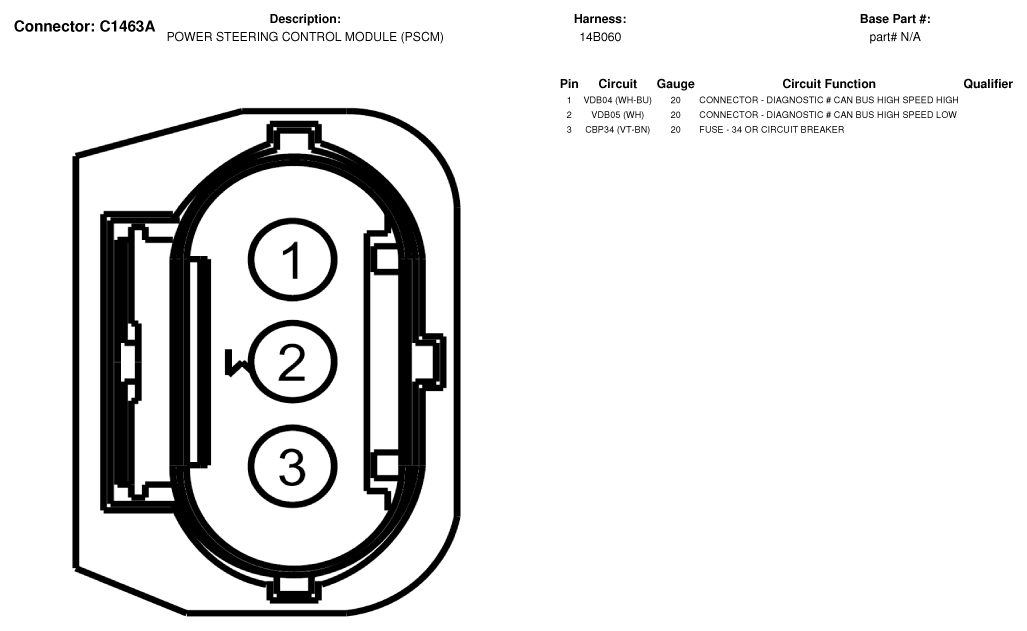

Fig 1: Power Steering Control Module Connector End View (C1463A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
