Powertrain Control Module Connector End View - C1381E

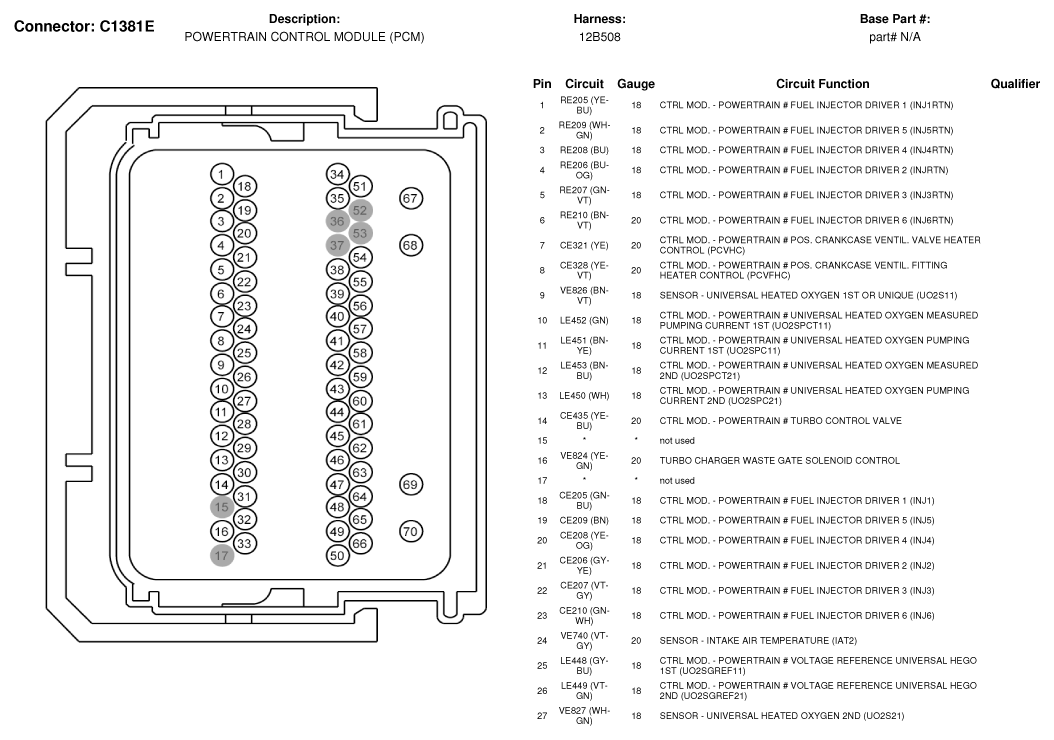

Fig 1: Powertrain Control Module Connector End View (C1381E) (1 Of 2)
G07329977Courtesy of FORD MOTOR CO.

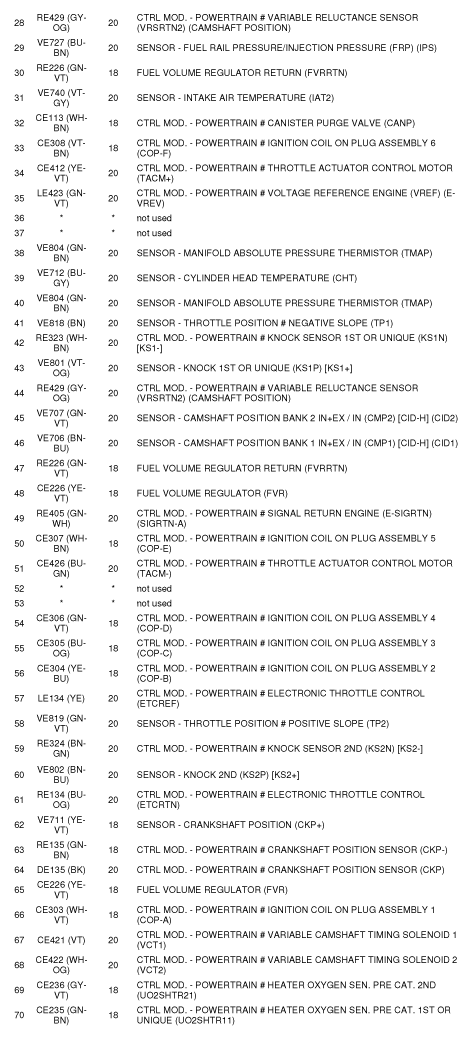

Fig 2: Powertrain Control Module Connector End View (C1381E) (2 Of 2)
G07329978Courtesy of FORD MOTOR CO.
