Restraints Control Module Connector End View - C310B

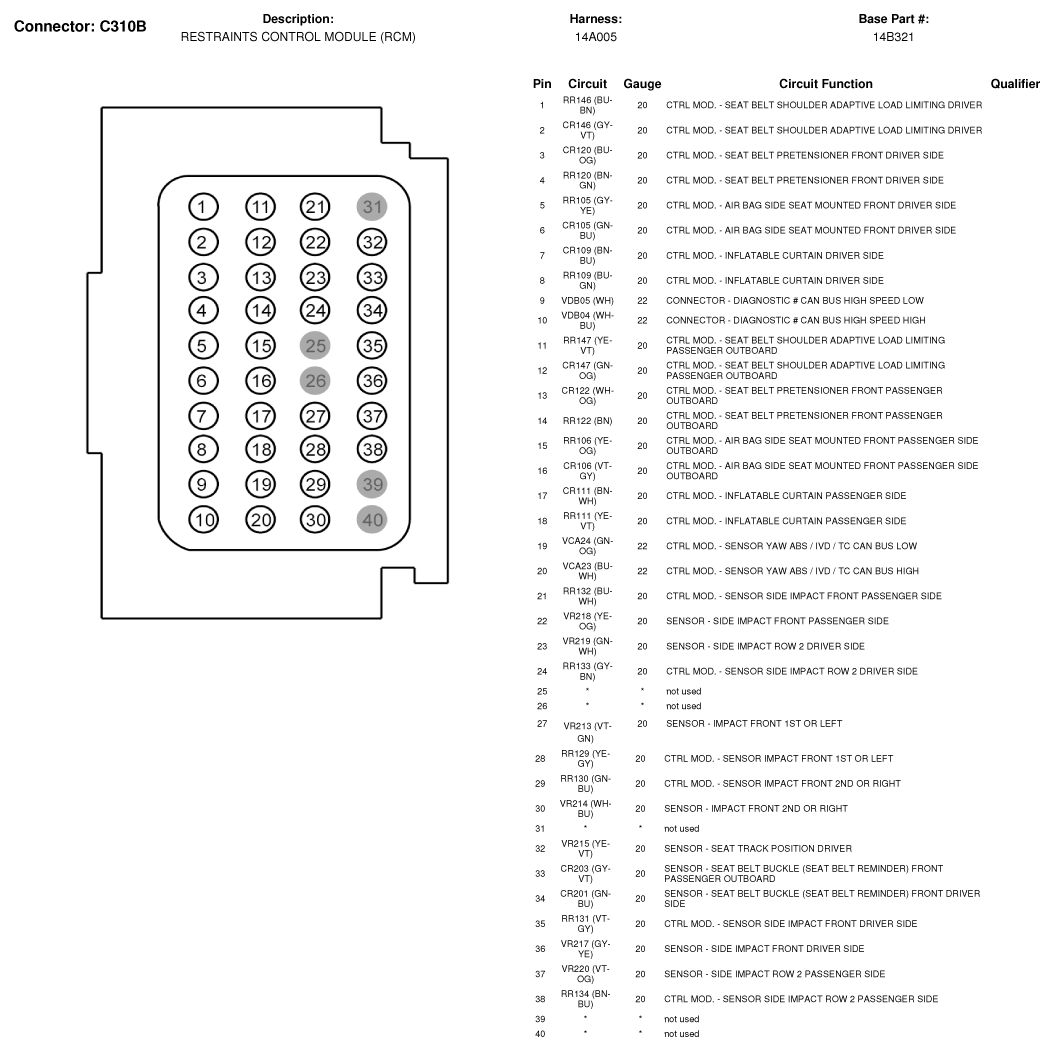

Fig 1: Restraints Control Module Connector End View (C310B)
G07329835Courtesy of FORD MOTOR CO.
