Timing Drive Components - Inverted Tooth Timing Chain

WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

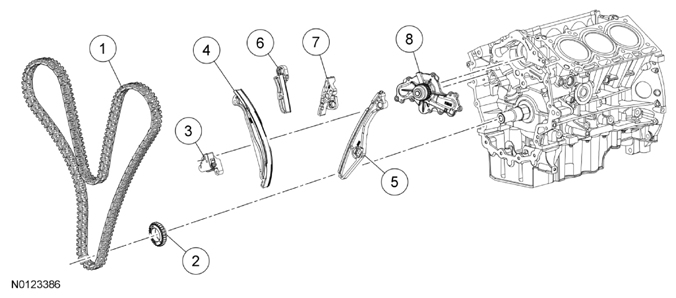

Fig 1: Exploded View Of Timing Drive Components - Inverted Tooth Timing Chain

Courtesy of FORD

Item	Part Number	Description
1	6268	Timing chain
2	6306	Crankshaft timing sprocket
3	6K254	Primary timing chain tensioner
4	6K255	Primary timing chain tensioner arm
5	6B274	LH lower primary timing chain guide
6	6M256	RH primary timing chain guide
7	6K297	LH upper primary timing chain guide
8	8501	Coolant pump
