Section 1848 (Engine Mechanical - 3.5L GTDI): Disassembly: Engine
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| 3 Jaw Puller 303-D121 or equivalent |
|
| Handle 205-153 (T80T-4000-W) |
|
| Remover, Crankshaft Rear Oil Seal 303-519 (T95P-6701-EH) |
|
| Remover, Fuel Injector 310-206 |
|
| Remover, Oil Seal 303-409 (T92C-6700CH) |
|
| Remover, VCT Spark Plug Tube Seal 303-1247/1 |
|
| Slide Hammer 307-005 (T59L-100-B) |
|
| Spring Lock Coupling Disconnect Tool 310-S039 (T90T-9550-S) or equivalent |
|
| Strap Wrench 303-D055 (D85L-6000-A) or equivalent |
|
| Tool, Camshaft Holding 303-1248 |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Motorcraft® Silicone Gasket Remover ZC-30 |
- |
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.
WARNING:
Clean all fuel residue from the engine compartment. If not removed, fuel residue may ignite when the engine is returned to operation. Failure to follow this instruction may result in serious personal injury.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTE:
Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.
NOTE:
The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain engine comes equipped with either a composite RH timing chain guide requiring the timing chain to ride on the outer side of the guide or a stamped steel RH timing chain guide requiring the timing chain to ride on the inner side of the guide. All roller timing chain engine replacement RH timing chain guides will be the stamped steel design.
NOTE:
Early build engine cylinder heads and fuel injectors differ in design than late build engines. Although these parts are serviced in the same way, the parts are not interchangeable between early build and late build engines. The level of cylinder heads and fuel injectors can be determined by inspecting the engine code label. Early build engines are built through 09/14/2010 (0S 490 BA) and late build engines are built on or after 09/15/2010 (1S 490 BA).
NOTE:
A clean working environment is essential to prevent dirt or foreign material contamination into the fuel rails.
NOTE:
For additional information, refer to the exploded view under the ASSEMBLY procedure
.
All engines
- Remove the 8 bolts and the flexplate.
- Remove the crankshaft sensor ring.

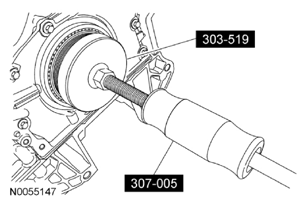

- Using the Crankshaft Rear Oil Seal Remover and Slide Hammer, remove and discard the rear crankshaft seal.
- Mount the engine on a suitable engine stand.

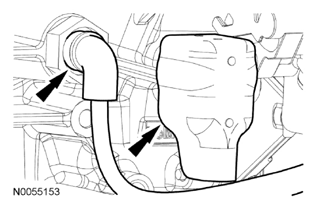

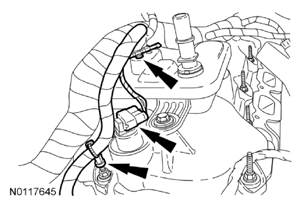

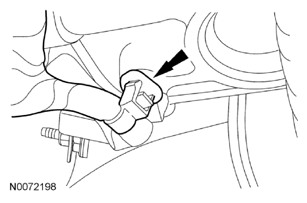

- If equipped, remove the heat shield and disconnect the block heater electrical connector.
- Detach all of the engine block heater harness retainers and remove the harness.

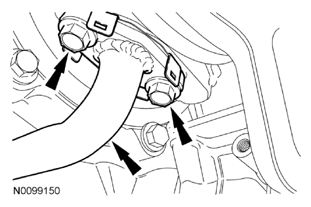

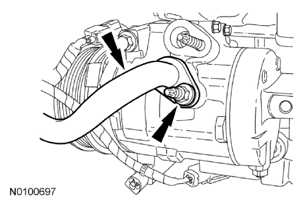

- Remove the nut and the A/C tube from the compressor.
- Discard the O-ring seal and gasket seal.

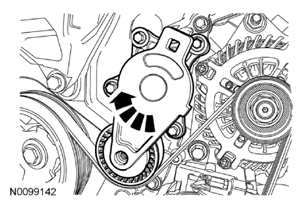

- Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.
- Remove the 3 bolts and the accessory drive belt tensioner.

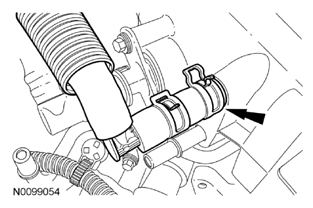

- Disconnect the brake vacuum tube from the intake manifold.
- Disconnect the LH turbocharger bypass valve electrical connector.
- Remove the turbocharger wastegate regulating valve hoses from the RH CAC tube and turbocharger wastegate regulating valve.

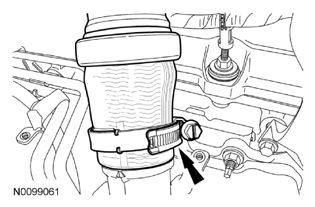

- Loosen the clamp and remove the LH turbocharger intake tube from the LH turbocharger.
- Disconnect the RH turbocharger bypass valve electrical connector.
- Loosen the clamp and remove the RH CAC tube from the RH turbocharger.
- Loosen the clamp and remove the RH turbocharger intake pipe from the RH turbocharger.
- Remove the nut from the RH valve cover stud bolt for the RH turbocharger intake tube.
- Remove the RH CAC tube nut from the intake manifold and remove the RH CAC tube and turbocharger intake tube as an assembly.

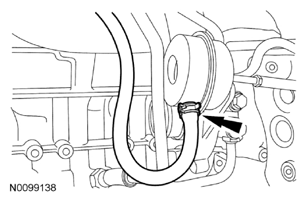

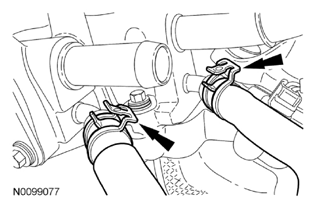

- Remove the lower radiator hose from the thermostat housing.

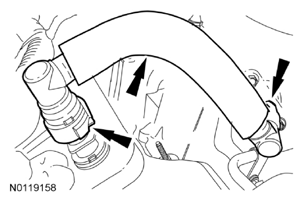

- Disconnect the 2 quick connect couplings and remove the PCV tube. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION Article.
- Remove the noise insulator shield for the fuel injection fuel pump and disconnect the electrical connector.
- Disconnect the Throttle Position (TP) sensor and electronic TB electrical connectors.

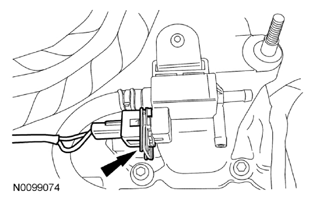

- Disconnect the LH Variable Camshaft Timing (VCT) solenoid electrical connector.
- Disconnect the A/C compressor electrical connector.
- Detach the wiring harness retainer from the from the A/C stud bolt.
- Remove the A/C compressor nut and the Catalyst Monitor Sensor (CMS) electrical connector bracket.
- Detach the CMS electrical connector from the bracket.
- Remove the nut and disconnect the generator B+ cable.

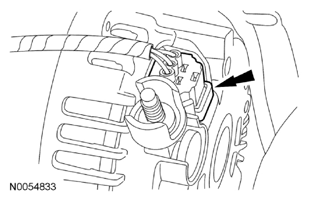

- Disconnect the generator electrical connector.

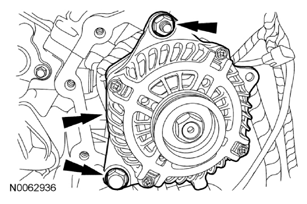

- Remove the nut, bolt and the generator.
- Remove the generator stud.

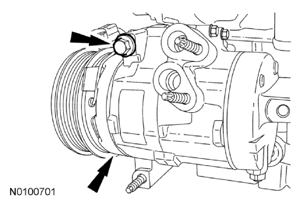

- Remove the bolt and the A/C compressor.
- Remove the A/C compressor mounting stud from the oil pan.

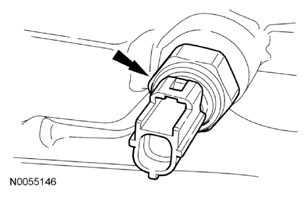

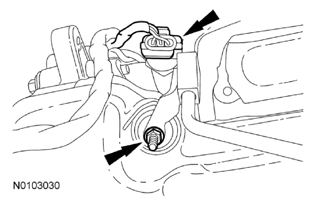

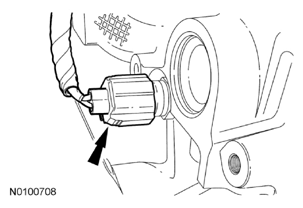

- Disconnect the Engine Oil Pressure (EOP) switch electrical connector.
- Detach the EOP wiring harness retainer from the engine block.

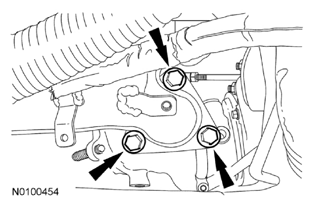

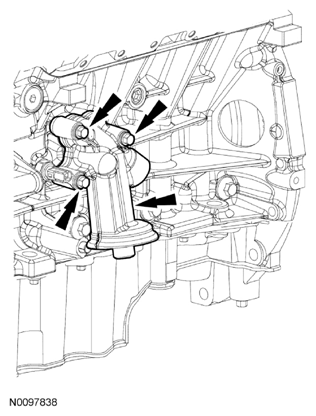

- Remove the 3 bolts and the oil filter adapter.
- Discard the gasket.
- Remove the EOP switch.

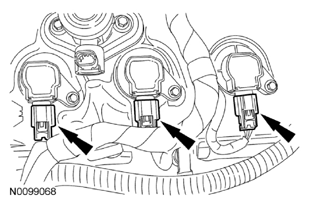

- Disconnect the 3 LH ignition coil-on-plug electrical connectors.
- Detach all the wiring harness retainers from the LH valve cover and stud bolts.

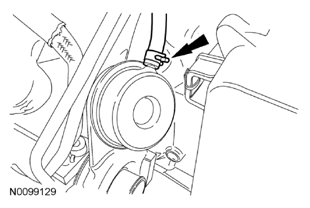

- Remove the oil level indicator.

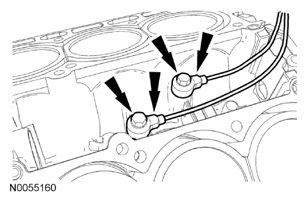

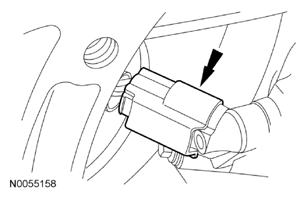

- Disconnect the Knock Sensor (KS) sensor electrical connector.

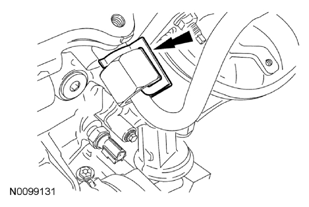

- Detach and disconnect the 2 fuel injector wiring harness electrical connectors.

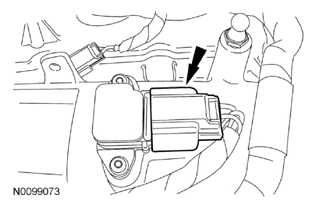

- Disconnect the Manifold Absolute Pressure (MAP)/Intake Air Temperature 2 (IAT2) sensor electrical connector.
- Disconnect the turbocharger wastegate regulating valve electrical connector.
- Detach the 2 wire harness-to-intake manifold retainers.
- Remove the fuel tube-to-engine front cover bracket bolt and position the fuel tube.
- Disconnect the 2 turbocharger coolant hoses from the intake manifold.

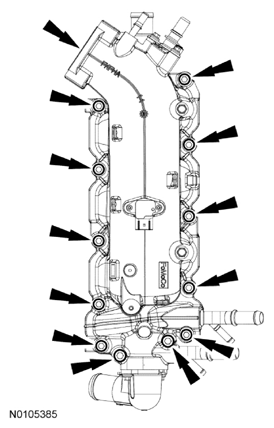

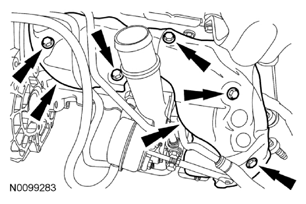

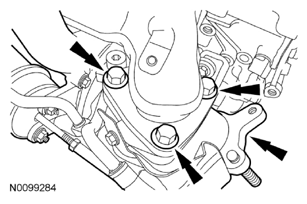

- Remove the 12 bolts and the intake manifold.
- Remove and discard the intake manifold, coolant crossover and thermostat housing gaskets.
- Clean and inspect all sealing surfaces.
- Disconnect the RH VCT solenoid electrical connector and detach the 2 wiring harness retainers.
- Disconnect the 3 RH ignition coil-on-plug electrical connectors.
- Detach all the wiring harness retainers from the RH valve cover and stud bolts.
- Disconnect the RH Camshaft Position (CMP) sensor electrical connector.
- Remove the bolt and the RH CMP sensor.
- Remove the bolt and the radio capacitor from the RH cylinder head.
- Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector from the rear of the RH cylinder head.
- Disconnect the LH CMP sensor electrical connector.
- Remove the bolt and the LH CMP sensor.
- Disconnect the turbocharger wastegate regulating valve hose from the LH turbocharger assembly.
- Remove the 2 bolts and the LH turbocharger oil return tube from the turbocharger.
- Remove and discard the gasket.

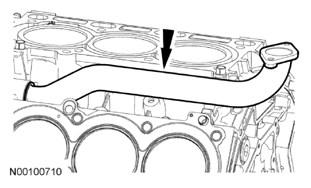

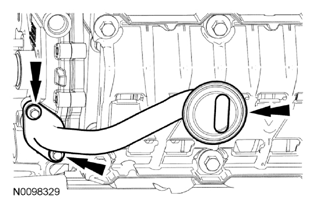

- Remove the LH turbocharger oil return tube from the oil pan.
- Discard the 2 O-ring seals.
- Remove the LH oil supply tube secondary latch.

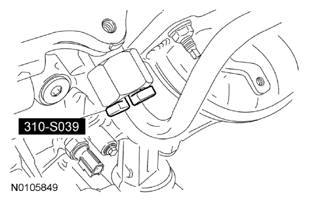

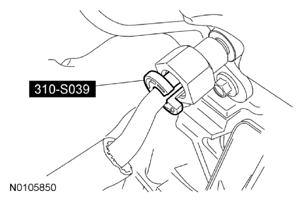

- Using the Spring Lock Coupling Disconnect Tool, remove the LH oil supply tube from the quick connect fitting.
- Inspect and if necessary, replace the quick connect filtering.
- Remove the 2 coolant tube banjo bolts and the LH turbocharger coolant tubes and sealing washers.
- Discard the sealing washers.
- Remove the LH turbocharger oil supply tube banjo bolt.
- Discard the sealing washer.
- Discard the oil supply tube filter.

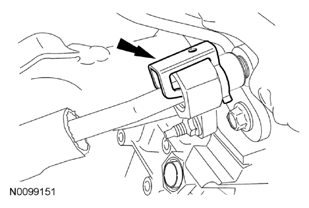

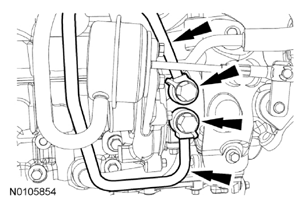

- Remove the 2 bolts and the lower LH turbocharger-to-cylinder block bracket.
- Remove the 2 bolts and the upper LH turbocharger bracket-to-cylinder block bracket.
- Remove the 3 LH turbocharger-to-exhaust manifold bolts and turbocharger.
- Discard the gasket and bolts.

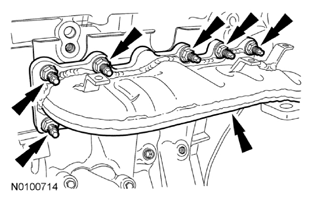

- Remove the 8 LH exhaust manifold nuts (6 shown in illustration) and the exhaust manifold.
- Discard the exhaust manifold gasket and nuts.
- Clean and inspect the LH exhaust manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION Article.

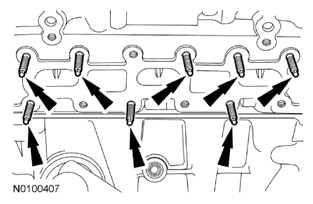

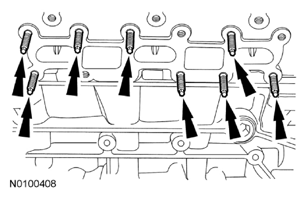

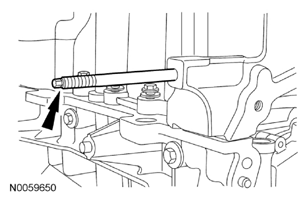

- Remove and discard the 8 LH exhaust manifold studs.
- Clean the exhaust manifold mating surface of the cylinder head with metal surface prep. Follow the directions on the packaging.
- Remove the LH coolant tube bracket-to-cylinder head nut.
- Remove the nut and the heat shield.

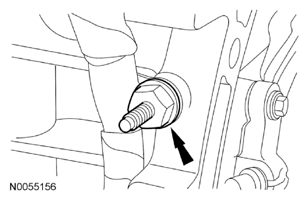

- Remove the wiring harness retainer stud bolt.
- Remove the wiring harness grommet.

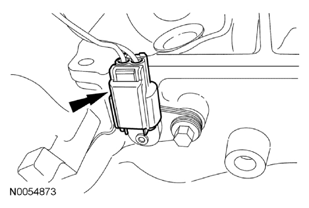

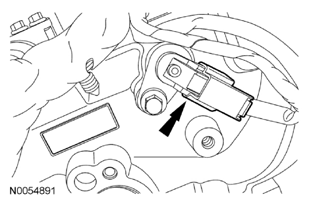

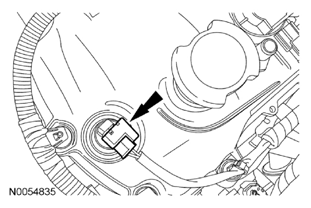

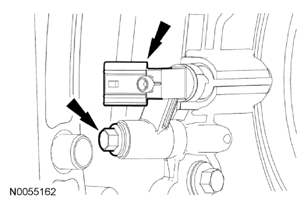

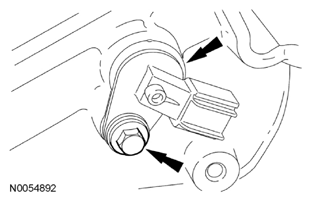

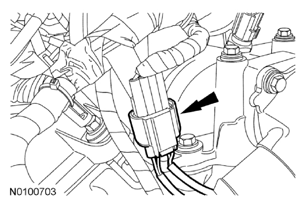

- Disconnect the Crankshaft Position (CKP) sensor electrical connector.

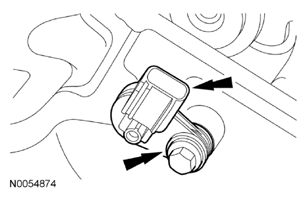

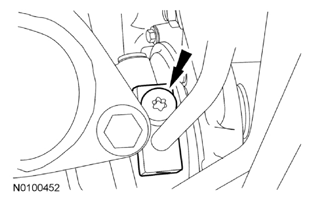

- Remove the bolt and the CKP sensor.
- Remove the 5 bolts and the 2 upper RH exhaust manifold heat shields.
- Disconnect the turbocharger wastegate regulating valve hose from the RH turbocharger assembly.
- Remove the 2 bolts and the RH turbocharger oil return tube from the RH turbocharger.
- Remove and discard the gasket.
- Remove the RH turbocharger oil return tube from the cylinder block.
- Discard the 2 O-ring seals.
- Remove the RH oil supply tube secondary latch.
- Using the Spring Lock Coupling Disconnect Tool, remove the RH oil supply tube from the quick connect fitting.
- Inspect and if necessary, replace the quick connect fitting.

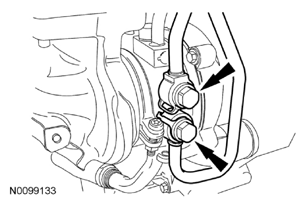

- Remove the 2 coolant tube banjo bolts and the RH turbocharger coolant tubes.
- Discard the sealing washers.
- Remove the 3 bolts and the upper turbocharger-to-cylinder block bracket.
- Remove the 3 exhaust manifold-to-turbocharger bolts and the turbocharger assembly.
- Discard the gasket and bolts.
- Remove the RH turbocharger oil supply tube banjo bolt.
- Discard the sealing washer.
- Discard the oil supply tube filter.
- Remove the 8 nuts and the RH exhaust manifold.
- Discard the nuts and exhaust manifold gaskets.
- Clean and inspect the RH exhaust manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION Article.
- Remove and discard the 8 RH exhaust manifold studs.
- Clean the exhaust manifold mating surface of the cylinder head with metal surface prep. Follow the directions on the packaging.

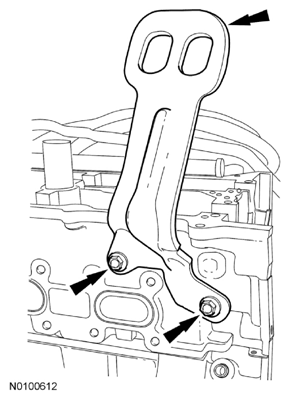

- Remove the 2 bolts and the RH engine lifting eye.
- Remove the RH coolant tube bracket-to-cylinder head bolt and the coolant tube assembly.

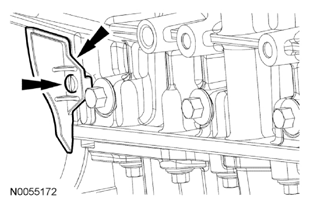

- Remove the pin-type retainer and the cover.
- Detach the wiring harness retainer from the rear of the LH cylinder head.

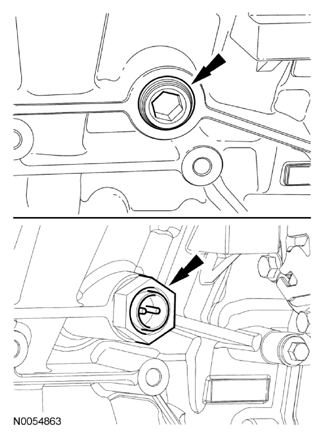

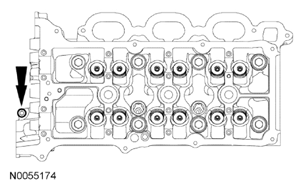

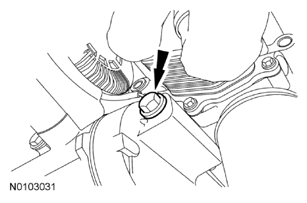

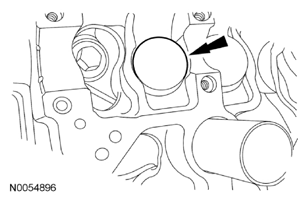

- Remove the LH cylinder block drain plug.
- Allow coolant to drain from the cylinder block.
- Remove the RH cylinder block drain plug or, if equipped, the block heater.
- Allow coolant to drain from the cylinder block.
- Remove the nut for the high pressure fuel tube from the LH valve cover stud bolt and disconnect the Fuel Rail Pressure (FRP) sensor electrical connector.
- Remove the high pressure fuel tube flare nut from the fuel injection pump. Remove the 2 high pressure fuel tube flare nuts from the fuel rails and remove the high pressure fuel tube assembly.

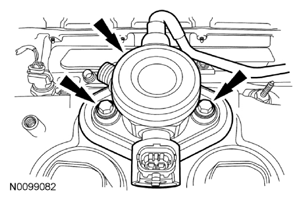

- Remove the 2 bolts and the fuel injection pump.
- Remove the fuel injection pump mounting plate.

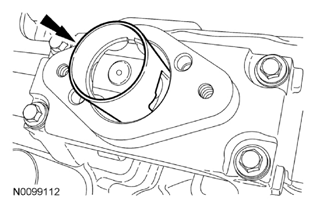

- Remove the fuel injection pump roller tappet.
- Inspect the fuel injection pump roller tappet. For additional information, refer to ENGINE CONTROLS - FUEL CHARGING SYSTEM & FUEL CONTROL SYSTEM - 3.5L/3.5L GTDI Article.

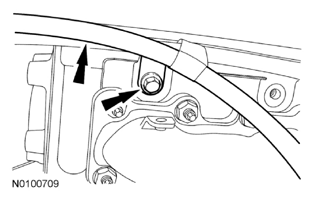

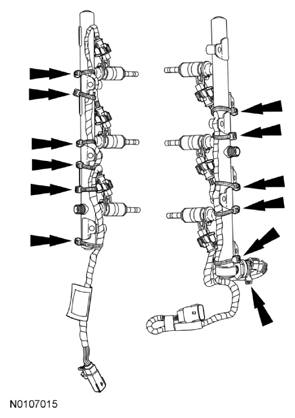

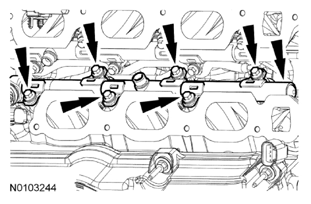

- Carefully cut and remove the fuel rail wire harness tie straps.

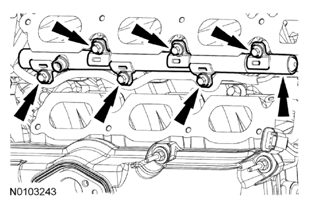

- Remove the 6 bolts and the LH fuel rail.
- Remove the 6 bolts and the RH fuel rail.
- Disconnect the 6 fuel injector electrical connectors and remove the 2 fuel injector wire harnesses.
- Remove and discard the 6 upper fuel injector O-ring seals.
- Remove and discard the 6 fuel injector clips.

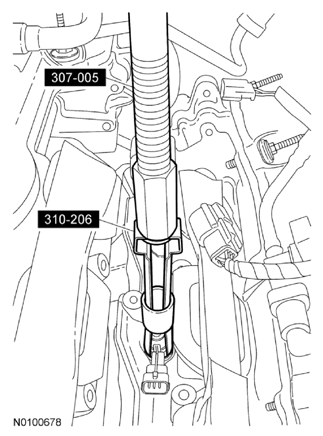

- Using the Slide Hammer and the Fuel Injector Remover, remove the 6 fuel injectors.

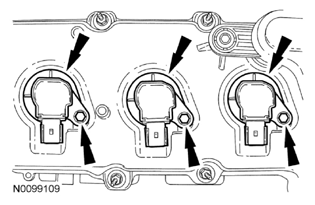

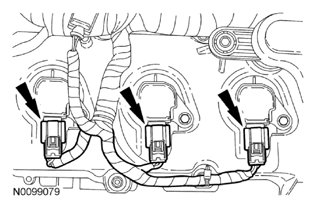

- Remove the 3 bolts and the 3 RH ignition coils-on-plugs.

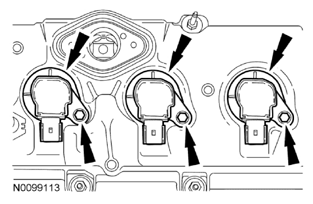

- Remove the 3 bolts and the 3 LH ignition coils-on-plugs.

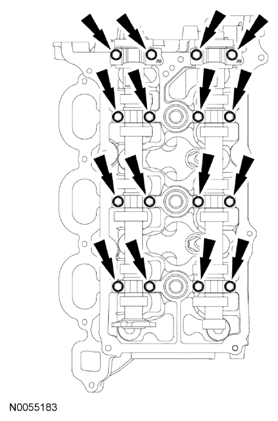

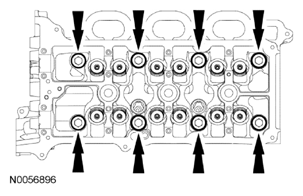

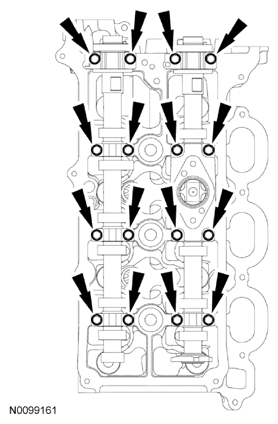

- Loosen the 10 stud bolts and remove the LH valve cover.
- Discard the gasket.
- Loosen the 11 stud bolts and remove the RH valve cover.
- Discard the gasket.

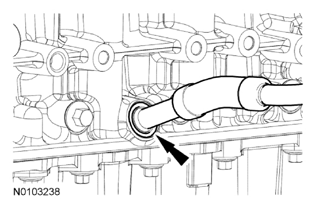

- Inspect the VCT solenoid seals and the spark plug tube seals. Install new seals if damaged.

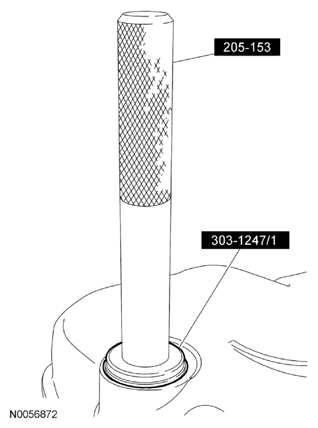

- Using the VCT Spark Plug Tube Seal Remover and Handle, remove the seal(s).
- Using the Strap Wrench, remove the crankshaft pulley bolt and washer.
- Discard the bolt.
- Using the 3 Jaw Puller, remove the crankshaft pulley.

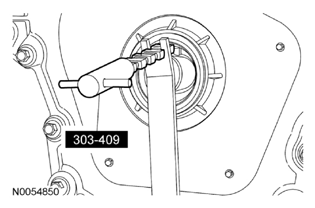

- Using the Oil Seal Remover, remove and discard the crankshaft front seal.

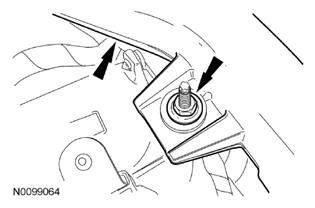

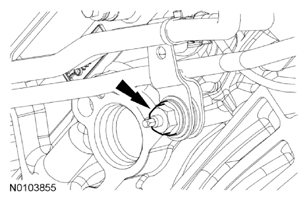

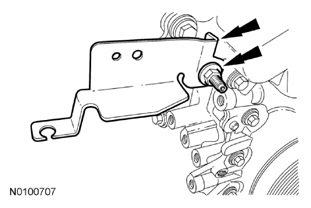

- Remove the stud bolt and Heated Oxygen Sensor (HO2S) connector bracket from the engine front cover.

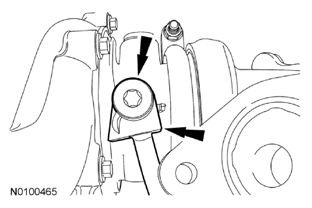

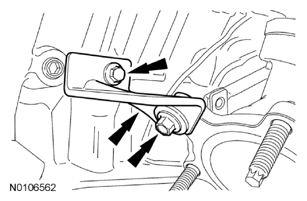

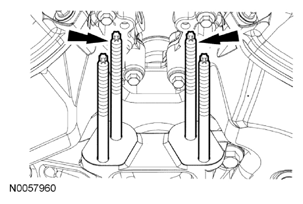

- Remove the 2 engine mount studs.

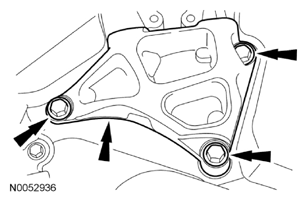

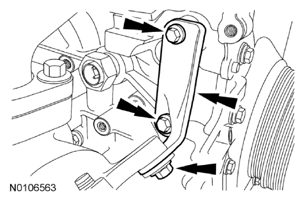

- Remove the 3 bolts and the engine mount bracket.

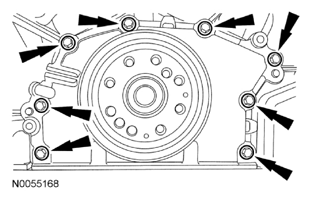

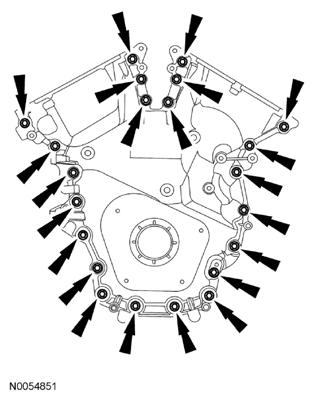

- Remove the 22 engine front cover bolts.

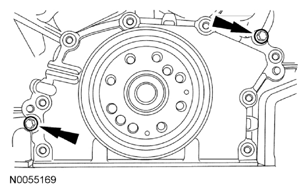

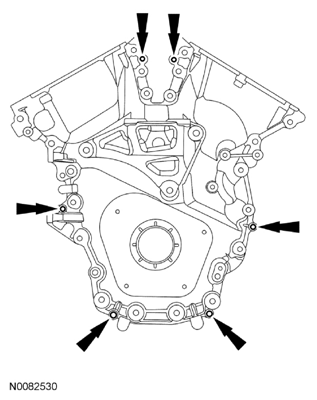

- Install 6 of the engine front cover bolts (finger-tight) into the 6 threaded holes in the engine front cover.
- Tighten the bolts one turn at a time in a crisscross pattern until the engine front cover-to-cylinder block seal is released.
- Remove the engine front cover.
- Tighten the bolts one turn at a time in a crisscross pattern until the engine front cover-to-cylinder block seal is released.

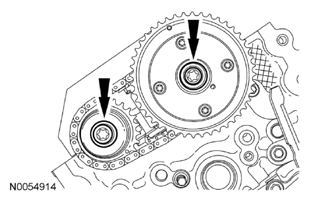

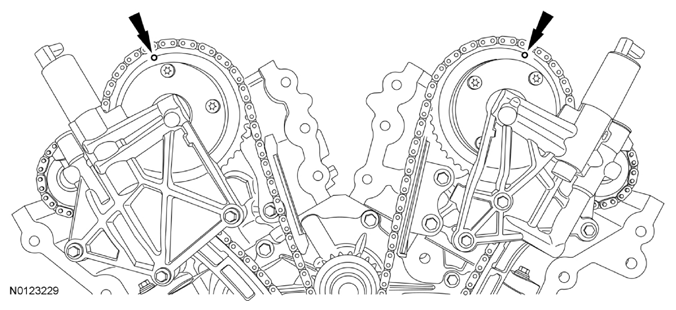

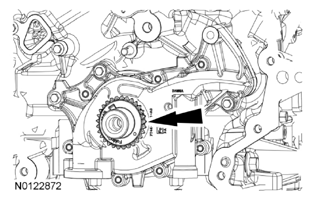

- Rotate the crankshaft clockwise and align the timing marks on the Variable Camshaft Timing (VCT) assemblies as shown in illustration.

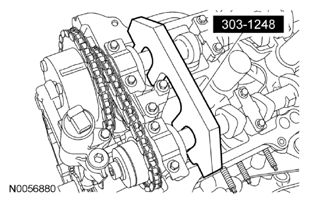

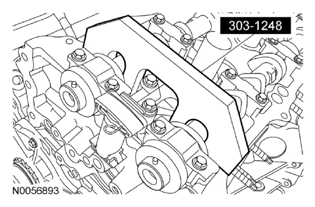

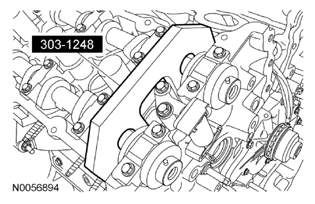

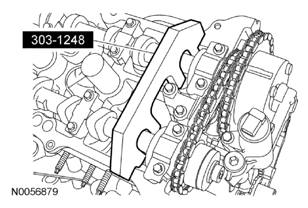

- Install the Camshaft Holding Tool onto the flats of the LH camshafts.
- Install the Camshaft Holding Tool onto the flats of the RH camshafts.

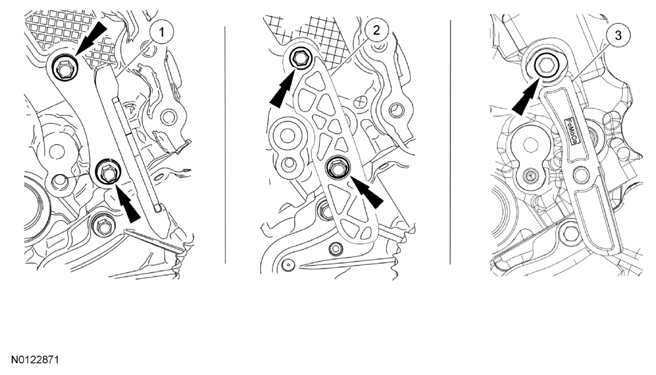

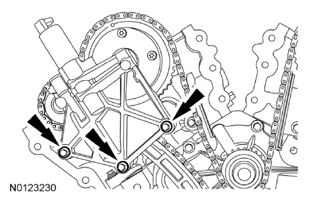

- Remove the 3 bolts and the RH VCT housing.
- Remove the 3 bolts and the LH VCT housing.
Engines equipped with a roller timing chain
NOTE: The following 3 steps are for primary timing chains when the colored links are not visible. - Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown in illustration.

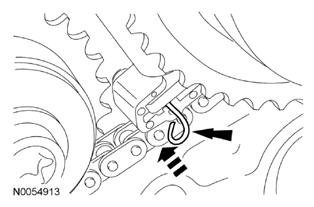

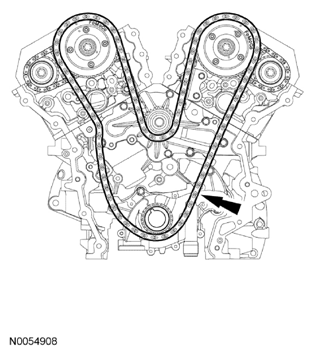

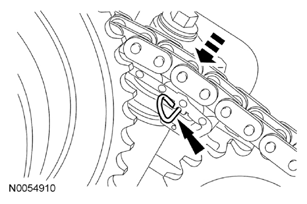

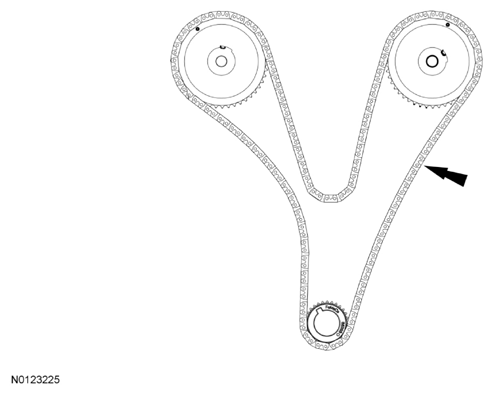

- Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown in illustration.
- Mark the timing chain link that aligns with the timing mark on the crankshaft sprocket as shown in illustration.

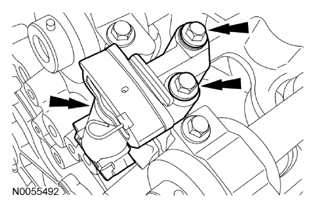

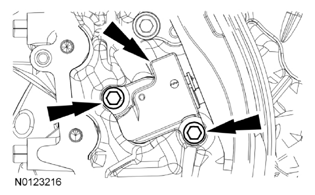

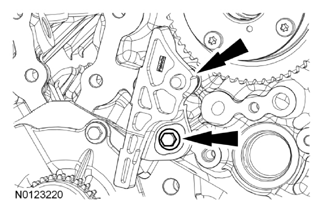

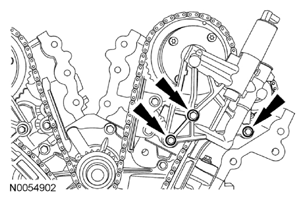

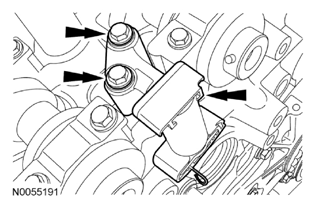

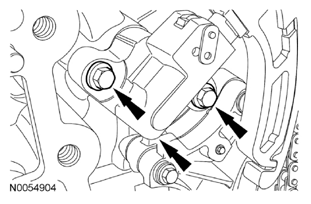

- Remove the 2 bolts and the primary timing chain tensioner.

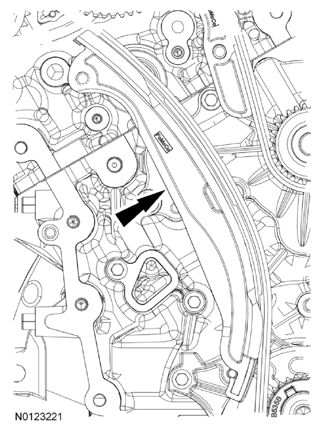

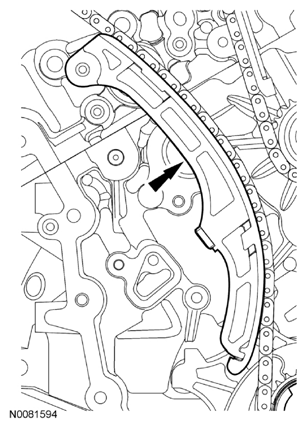

- Remove the primary timing chain tensioner arm.

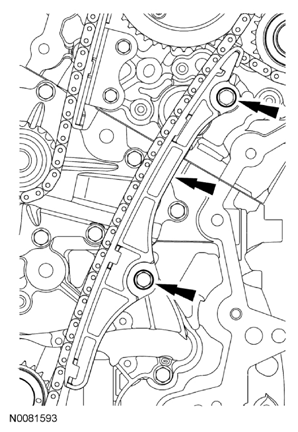

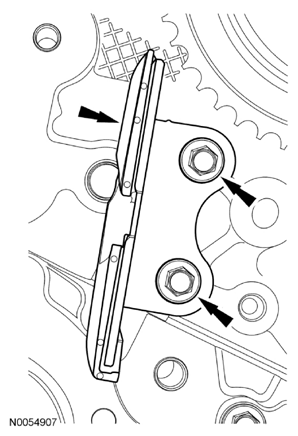

- Remove the 2 bolts and the lower LH primary timing chain guide.
- Remove the primary timing chain.

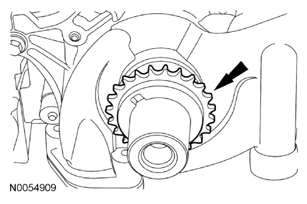

- Remove the crankshaft timing chain sprocket.

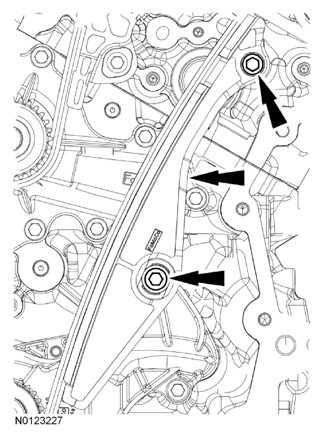

- Remove the 2 bolts and the upper LH primary timing chain guide.
Engines equipped with an inverted tooth timing chain
NOTE: The following 3 steps are for primary timing chains when the colored links are not visible. - Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown in illustration.
- Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown in illustration.
- Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown in illustration.
- Remove the 2 bolts and the primary timing chain tensioner.
- Remove the primary timing chain tensioner arm.
- Remove the 2 bolts and the lower LH primary timing chain guide.
- Remove the primary timing chain.
- Remove the crankshaft timing chain sprocket.
- Remove the bolt and the upper LH primary timing chain guide.
All engines
- Compress the LH secondary timing chain tensioner and install a suitable lockpin to retain the tensioner in the collapsed position.
- Remove and discard the LH VCT assembly bolt and the LH exhaust camshaft sprocket bolt.
- Remove the LH VCT assembly, secondary timing chain and the LH exhaust camshaft sprocket as an assembly.
- Remove the Camshaft Holding Tool from the LH camshafts.
- Verify the LH camshafts are in the neutral position.
- Remove the 2 bolts and the LH secondary timing chain tensioner.
- Remove the bolts and the LH camshaft bearing caps.
- Remove the LH camshafts.
- Compress the RH secondary timing chain tensioner and install a suitable lockpin to retain the tensioner in the collapsed position.
- Remove and discard the RH VCT assembly bolt and the RH exhaust camshaft sprocket bolt.
- Remove the RH VCT assembly, secondary timing chain and the RH exhaust camshaft sprocket as an assembly.
- Remove the Camshaft Holding Tool from the RH camshafts.
- Rotate the RH camshafts counterclockwise to the neutral position.
- Remove the 2 bolts and the RH secondary timing chain tensioner.
- Remove the bolt(s) and the RH timing chain guide.
- Roller timing chain stamped steel RH guide.
- Roller timing chain composite RH guide.
- Inverted tooth timing chain RH guide.
- Remove the bolts and the RH camshaft bearing caps.
- Remove the RH camshafts.
- Remove the valve tappets from the cylinder heads.
- Remove and discard the M6 bolt from each cylinder head.
- Remove and discard the 8 bolts from each cylinder head.
- Remove the cylinder heads.
- Discard the cylinder head gaskets.
- Clean the cylinder head-to-cylinder block mating surfaces of both the cylinder heads and the cylinder block in the following sequence.
- Remove any large deposits of silicone or gasket material with a plastic scraper.
- Apply silicone gasket remover, following package directions, and allow to set for several minutes.
- Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
- Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
- Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION Article.
- Remove the coolant inlet tube.
- Remove and discard the O-ring seal.

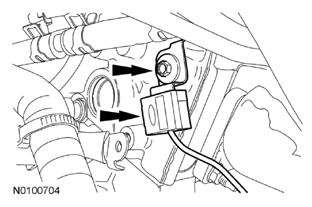

- Remove the 2 bolts and the KS.

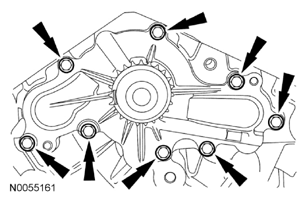

- Remove the 8 bolts and the coolant pump.
- Remove the 16 oil pan bolts.

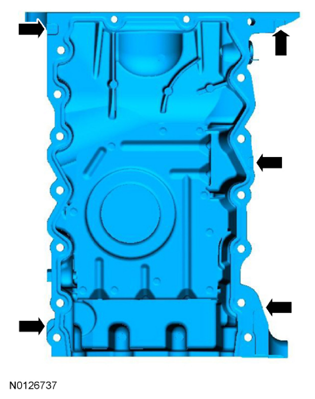

- Using a suitable pry tool, locate the pry pads and pry the oil pan loose and remove.
- Remove the 2 bolts and the oil pump screen and pickup tube.
- Discard the O-ring seal.

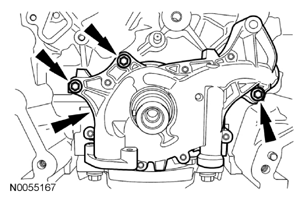

- Remove the 3 bolts and the oil pump.
- Remove the 8 crankshaft rear seal retainer bolts.
- Install the 2 M6 oil pan bolts (finger-tight) into the 2 threaded holes in the crankshaft rear seal retainer.
- Alternately tighten the 2 bolts one turn at a time until the crankshaft rear seal retainer-to-cylinder block seal is released.
- Remove the crankshaft rear seal retainer.
- Alternately tighten the 2 bolts one turn at a time until the crankshaft rear seal retainer-to-cylinder block seal is released.
- Clean the engine front cover, oil pan and crankshaft rear seal retainer plate using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm.
- Thoroughly wash the engine front cover, oil pan and crankshaft rear seal retainer plate to remove any foreign material, including any abrasive particles created during the cleaning process.
- Before removing the pistons, inspect the top of the cylinder bores. If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad or equivalent, following manufacturer's instructions.
- Remove the bolts in the sequence shown in illustration.
- Remove the main bearing cap support brace.
- Discard the bolts.
- Remove the connecting rod cap bolts and cap.
- Remove the piston/rod assembly from the engine block.
- Repeat the previous 2 steps until all the piston/rod assemblies are removed from the engine block.

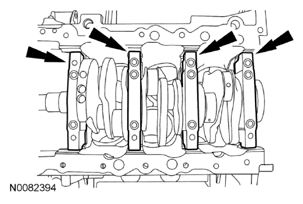

- Remove the 8 main bearing cap side bolts and the 8 main bearing cap bolts in the sequence shown in illustration.
- Discard the bolts.
- Remove the 4 main bearing caps.

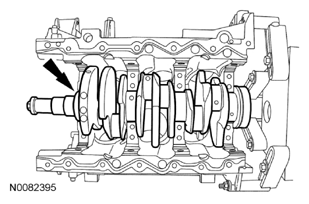

- Remove the crankshaft.

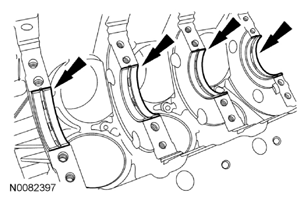

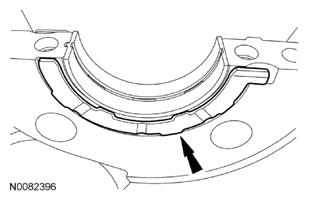

- Remove the 2 crankshaft thrust bearings from the rear main bearing bulkhead.
- Remove the 4 crankshaft main bearings from the cylinder block.
- Remove the 4 crankshaft main bearings from the main bearing caps.
- Inspect the cylinder block, bearing cap support brace, pistons and connecting rods. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION Article.
- Clean the sealing surfaces of the cylinder block in the following sequence.
- Remove any large deposits of silicone or gasket material.
- Apply silicone gasket remover and allow to set for several minutes.
- Remove the silicone gasket remover. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
- Apply metal surface prep to remove any remaining traces of oil or coolant and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
- Make sure the 2 engine front cover locating dowel pins are seated correctly in the cylinder block.
NOTE:
Install the engine stand bolts into the cylinder block only. Do not install the bolts into the oil pan.
NOTE:
Index-mark the hoses for installation.
NOTE:
The compression limiter bushing may fall out of the mounting bracket grommet on the turbocharger intake tube during service. Make sure the bushing is in place when reinstalling the tube or damage to the tube may occur.
NOTE:
The compression limiter bushing may fall out of the mounting bracket grommet on the Charge Air Cooler (CAC) tube during service. Make sure the bushing is in place when reinstalling the tube or damage to the tube may occur.
NOTE:
If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
NOTE:
Note the routing of the 2 fuel rail wiring harnesses for installation.
NOTE:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.
NOTE:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.
NOTE:
To release the fuel pressure in the high pressure fuel tube, wrap the flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of the flare nuts.
NOTE:
Valve cover is removed for clarity.
NOTE:
Early build engine cylinder heads and fuel injectors differ in design than late build engines. Although these parts are serviced in the same way, the parts are not interchangeable between early build and late build engines. The following illustrations depict early build components, late build components similar.
NOTE:
It is very important to note the routing of the wiring harness on the fuel rails and index-mark the locations of the tie straps prior to removal or damage may occur to the wire harnesses during installation. The illustration details the correct wire harness routing and tie strap positioning for installation.
NOTE:
Use compressed air to remove any dirt or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.
NOTE:
Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.
NOTE:
When removing the fuel rails, the fuel injectors may remain in the fuel rails but normally remain lodged in the cylinder heads and require the use of a Fuel Injector Remover to extract.
NOTE:
RH shown in illustration, LH similar.
NOTE:
When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
NOTE:
When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
NOTE:
VCT solenoid seal removal shown in illustration, spark plug tube seal removal similar.
NOTE:
Only use hand tools to remove the studs.
NOTE:
Engine equipped with roller timing chain and stamped steel RH timing chain guide shown in illustration, other applications similar.
NOTE:
The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.
NOTE:
The Camshaft Holding Tool will hold the camshafts in the TDC position.
NOTE:
The crankshaft sprocket timing mark should be between the 2 colored links.
NOTE:
The VCT bolt and the exhaust camshaft bolt must be discarded and new ones installed. However, the exhaust camshaft washer is reusable.
NOTE:
When the Camshaft Holding Tool is removed, valve spring pressure will rotate the LH camshafts approximately 3 degrees to a neutral position.
NOTE:
The camshafts must remain in the neutral position during removal or engine damage may occur.
NOTE:
Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
NOTE:
The VCT bolt and the exhaust camshaft bolt must be discarded and new ones installed. However, the exhaust camshaft washer is reusable.
NOTE:
The camshafts must remain in the neutral position during removal or engine damage may occur.
NOTE:
The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain engine comes equipped with either a composite RH timing chain guide requiring the timing chain to ride on the outer side of the guide or a stamped steel RH timing chain guide requiring the timing chain to ride on the inner side of the guide. All roller timing chain engine replacement RH timing chain guides will be the stamped steel design.
NOTE:
Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
NOTE:
If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
NOTE:
LH shown in illustration, RH similar.
NOTE:
LH shown in illustration, RH similar.
NOTE:
Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
NOTE:
Aluminum surfaces are soft and may be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
NOTE:
The cylinder head bolts must be discarded and new bolts must be installed. They are a torque-to-yield design and cannot be reused.
NOTE:
LH shown in illustration, RH similar.
NOTE:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
NOTE:
Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
NOTE:
If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.
NOTE:
Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the engine front cover, oil pan and crankshaft rear seal retainer plate. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean the engine front cover, oil pan and crankshaft rear seal retainer plate. These tools cause scratches and gouges that make leak paths.
NOTE:
The main bearing cap support brace bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.
NOTE:
The connecting rod cap bolts are a torque-to-yield design. The original connecting rod cap bolts will be used when measuring the connecting rod large end bore during assembly. The connecting rod cap bolts will be discarded after measurement.
NOTE:
Clearly mark the position and orientation of the connecting rods, connecting rod caps and connecting rod bearings for reassembly.
NOTE:
Do not scratch the cylinder walls or crankshaft journals with the connecting rod.
NOTE:
The 8 main bearing cap side bolts and the 8 main bearing cap bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.
NOTE:
Clearly mark the position and orientation of the main bearing caps for reassembly.
NOTE:
If the main bearings are being reused, mark them for correct position and orientation for reassembly.
NOTE:
Note the position of the thrust washer on the outside of the No. 4 rear main bearing cap.
NOTE:
Note the position of the 2 thrust washers on the inside and outside of the rear main bearing bulkhead.
NOTE:
Inside shown in illustration, outside similar.
NOTE:
If the main bearings are being reused, mark them for correct position and orientation for reassembly.
NOTE:
If the main bearings are being reused, mark them for correct position and orientation for reassembly.
NOTE:
Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
NOTE:
Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of sealant.
