Timing Drive Components: Installation

All engines

NOTE: The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain engine comes equipped with either a composite RH timing chain guide requiring the timing chain to ride on the outer side of the guide or a stamped steel RH timing chain guide requiring the timing chain to ride on the inner side of the guide. All roller timing chain engine replacement RH timing chain guides will be the stamped steel design.

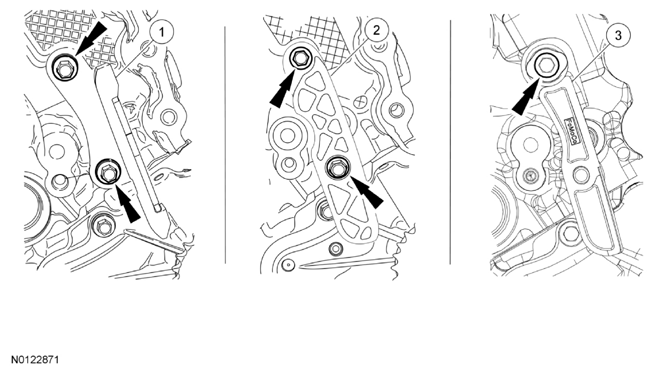

1. Install the RH timing chain guide and bolt(s). Tighten to 10 Nm (89 lb-in).
   1. Roller timing chain stamped steel RH guide.
   2. Roller timing chain composite RH guide.
   3. Inverted tooth timing chain RH guide.
      Fig 1: Locating RH Timing Chain Guide And Bolts

      Courtesy of FORD

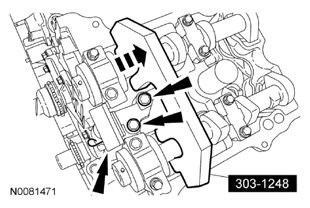

NOTE: It is necessary to tilt the Camshaft Holding Tool toward the rear of the engine to access the rearmost secondary timing chain tensioner bolt.

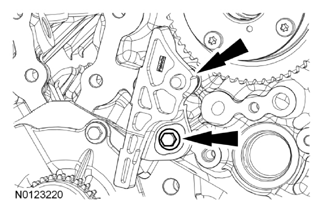

2. Install the RH secondary timing chain tensioner and the 2 bolts.
   • Tighten to 10 Nm (89 lb-in).
     Fig 2: Installing RH Secondary Timing Chain Tensioner

     Courtesy of FORD

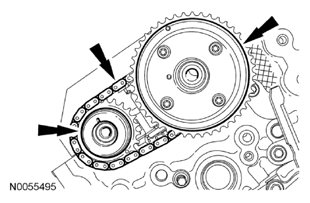

3. Assemble the RH VCT assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
   • Align the colored links with the timing marks.
     Fig 3: Locating Timing Marks On RH VCT Assembly, RH Exhaust Camshaft Sprocket And RH Secondary Timing Chain

     Courtesy of FORD
4. Position the RH secondary timing assembly onto the camshafts.
   Fig 4: Locating RH Secondary Timing Assembly Onto Camshafts

   Courtesy of FORD
5. Install the new VCT bolt and new exhaust camshaft bolt and the original washer. Tighten in 4 stages.
   • Stage 1: Tighten to 40 Nm (30 lb-ft).
   • Stage 2: Loosen one full turn.
   • Stage 3: Tighten to 10 Nm (89 lb-in).
   • Stage 4: Tighten 90 degrees.
     Fig 5: Locating RH VCT Assembly And RH Exhaust Camshaft Sprocket Bolts

     Courtesy of FORD

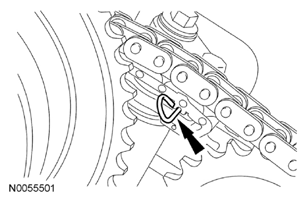

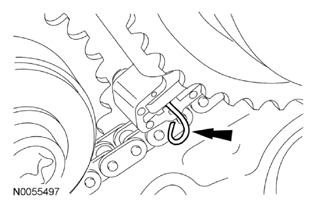

6. Remove the lockpin from the RH secondary timing chain tensioner.
   Fig 6: Locating RH Secondary Timing Chain Tensioner Lockpin

   Courtesy of FORD
NOTE: It is necessary to tilt the Camshaft Holding Tool toward the rear of the engine to access the rearmost secondary timing chain tensioner bolt.
7. Install the LH secondary timing chain tensioner and the 2 bolts.
   • Tighten to 10 Nm (89 lb-in).
     Fig 7: Installing LH Secondary Timing Chain Tensioner

     Courtesy of FORD
8. Assemble the LH VCT assembly, the LH exhaust camshaft sprocket and the LH secondary timing chain.
   • Align the colored links with the timing marks.
     Fig 8: Locating Timing Marks On LH VCT Assembly, LH Exhaust Camshaft Sprocket And LH Secondary Timing Chain

     Courtesy of FORD
9. Position the LH secondary timing assembly onto the camshafts.
   Fig 9: Locating LH Secondary Timing Assembly Onto Camshafts

   Courtesy of FORD

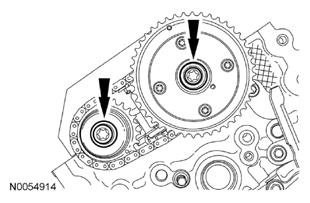

10. Install the new VCT bolt and new exhaust camshaft bolt and the original washer. Tighten in 4 stages.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 10 Nm (89 lb-in).
    • Stage 4: Tighten 90 degrees.
      Fig 10: Locating LH VCT Assembly And LH Exhaust Camshaft Sprocket Bolts

      Courtesy of FORD
11. Remove the lockpin from the LH secondary timing chain tensioner.
    Fig 11: Locating LH Secondary Timing Chain Tensioner Lockpin

    Courtesy of FORD

    Engine equipped with an inverted tooth timing chain

12. Install the crankshaft timing chain sprocket.
    Fig 12: Locating Crankshaft Timing Chain Sprocket

    Courtesy of FORD
13. Install the upper LH primary timing chain guide and the bolt.
    • Tighten to 10 Nm (89 lb-in).
      Fig 13: Locating Upper LH Primary Timing Chain Guide And Bolt

      Courtesy of FORD
NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.
Fig 14: Locating Timing Marks On VCT Assemblies And Crankshaft Sprocket
Courtesy of FORD
14. Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.
15. Install the lower LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 15: Locating Lower LH Primary Timing Chain Guide And Bolts

      Courtesy of FORD

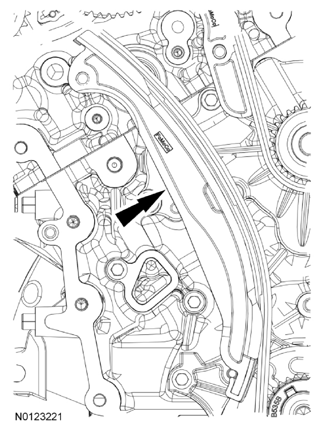

16. Install the primary timing chain tensioner arm.
    Fig 16: Locating Primary Timing Chain Tensioner Arm

    Courtesy of FORD
17. Reset the primary timing chain tensioner.
    1. Release the ratchet detent.
    2. Using a soft-jawed vise, compress the ratchet plunger.
    3. Align the hole in the ratchet plunger with the hole in the tensioner housing and install a suitable lockpin.
       Fig 17: Compressing Ratchet Plunger

       Courtesy of FORD
NOTE: It may be necessary to rotate the crankshaft slightly to remove slack from the timing chain and install the tensioner.

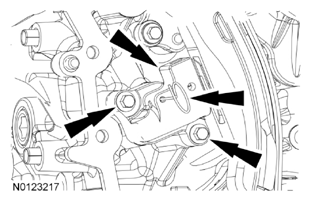

18. Install the primary tensioner and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
    • Remove the lockpin.
      Fig 18: Locating Primary Tensioner Bolts

      Courtesy of FORD
19. As a post-check, verify correct alignment of all timing marks.
    • There are 48 links between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
    • There are 35 links between the LH intake VCT assembly colored link (2) and the 2 crankshaft sprockets colored links (3).
      Fig 19: Locating Timing Marks On VCT Assemblies And Crankshaft Sprocket

      Courtesy of FORD

    Engine equipped with a roller timing chain

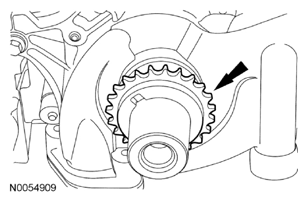

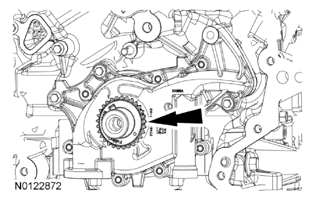

20. Install the crankshaft timing chain sprocket.
    Fig 20: Locating Crankshaft Timing Chain Sprocket

    Courtesy of FORD

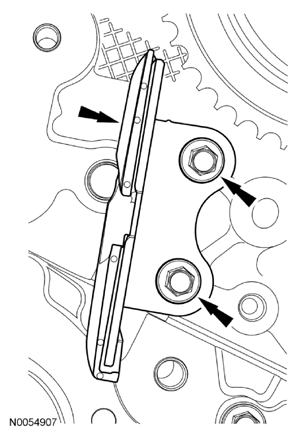

21. Install the upper LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 21: Locating Upper LH Primary Timing Chain Guide And Bolts

      Courtesy of FORD

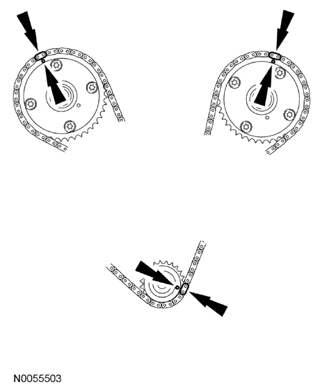

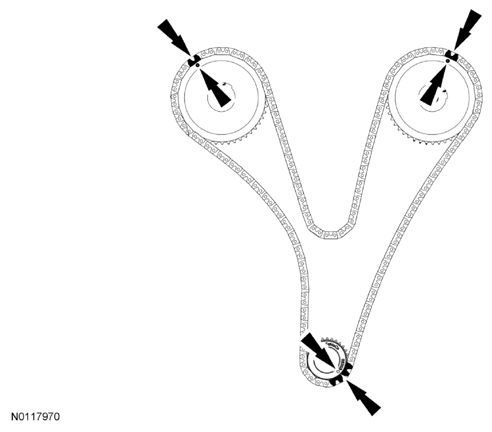

22. Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.
    Fig 22: Locating Timing Marks On VCT Assemblies And Crankshaft Sprocket

    Courtesy of FORD

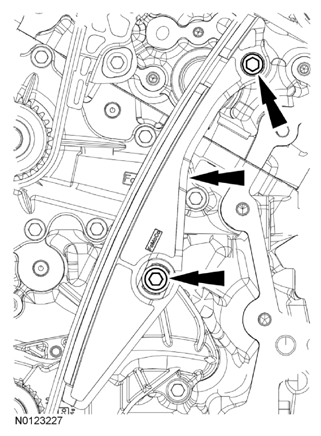

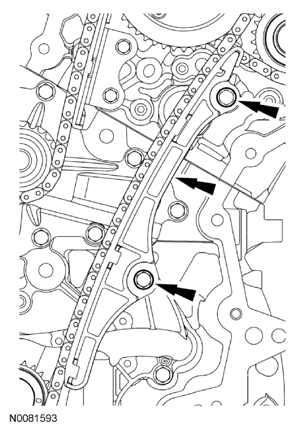

23. Install the lower LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 23: Locating Lower LH Primary Timing Chain Guide And Bolts

      Courtesy of FORD

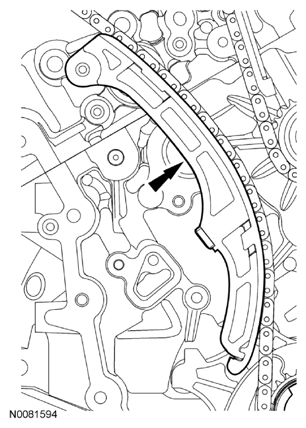

24. Install the primary timing chain tensioner arm.
    Fig 24: Locating Primary Timing Chain Tensioner Arm

    Courtesy of FORD

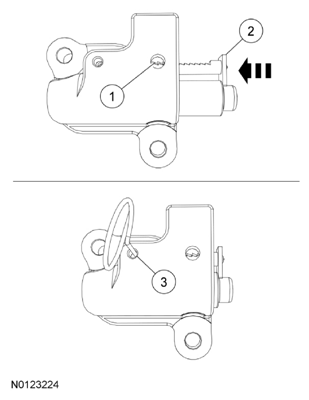

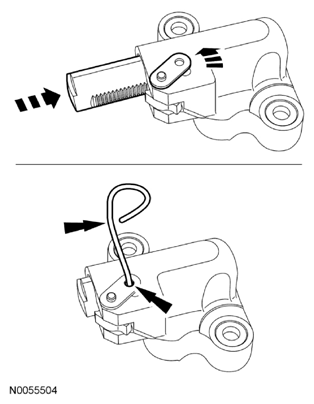

25. Reset the primary timing chain tensioner.
    • Rotate the lever counterclockwise.
    • Using a soft-jawed vise, compress the plunger.
    • Align the hole in the lever with the hole in the tensioner housing.
    • Install a suitable lockpin.
      Fig 25: Resetting Primary Timing Chain Tensioner

      Courtesy of FORD
NOTE: It may be necessary to rotate the crankshaft slightly to remove slack from the timing chain and install the tensioner.

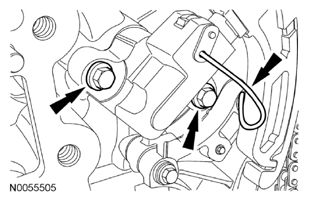

26. Install the primary tensioner and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
    • Remove the lockpin.
      Fig 26: Locating Primary Tensioner Bolts And Lockpin

      Courtesy of FORD

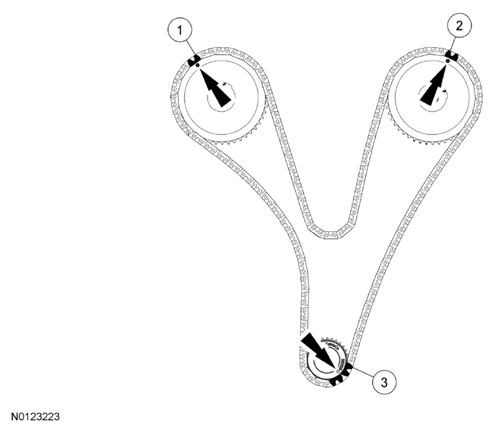

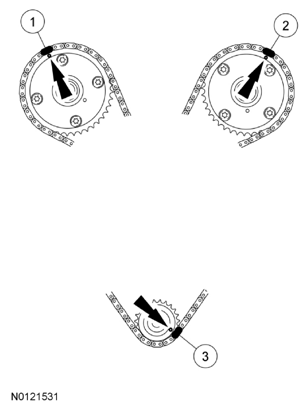

27. As a post-check, verify correct alignment of all timing marks.
    • There are 38 links between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
    • There are 27 links between the LH intake VCT assembly colored link (2) and the crankshaft sprocket colored link (3).
      Fig 27: Locating Timing Marks On VCT Assemblies And Crankshaft Sprocket

      Courtesy of FORD

    All engines

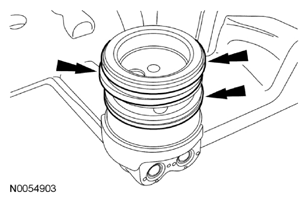

28. Inspect the VCT housing seals for damage and replace as necessary.
    Fig 28: Locating VCT Housing Seals

    Courtesy of FORD
NOTE: RH shown in illustration, LH similar.
NOTE: During removal, the O-ring seal may remain on the cylinder head. If so, remove the O-ring seal from the cylinder head, inspect the seal (replace as necessary) and install the O-ring seal on the VCT housing.
Fig 29: Locating VCT Housing-To-Cylinder Head O-Ring Seal
Courtesy of FORD
29. Inspect the VCT housing-to-cylinder head O-ring seals for damage and replace as necessary.
NOTE: Make sure the dowels on the Variable Camshaft Timing (VCT) housing are fully engaged in the cylinder head prior to tightening the bolts. Failure to follow this process will result in severe engine damage.

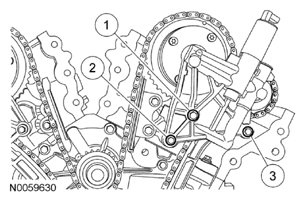

30. Install the LH VCT housing and the 3 bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      Fig 30: Identifying LH VCT Housing Bolts Tightening Sequence

      Courtesy of FORD
NOTE: Make sure the dowels on the Variable Camshaft Timing (VCT) housing are fully engaged in the cylinder head prior to tightening the bolts. Failure to follow this process will result in severe engine damage.

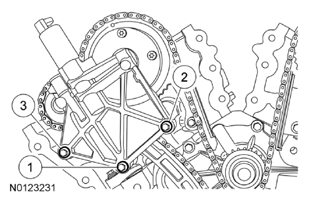

31. Install the RH VCT housing and the 3 bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      Fig 31: Identifying RH VCT Housing Bolts Tightening Sequence

      Courtesy of FORD
32. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER  .
