Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

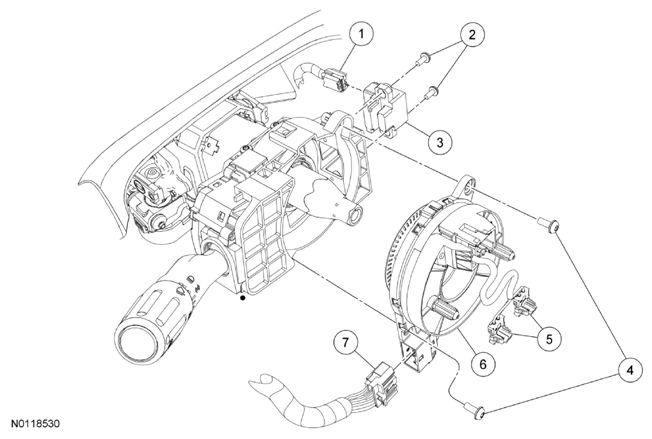

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Steering wheel rotation sensor electrical connector (part of 14401) |
| 2 | W504694 | Steering wheel rotation sensor screws (2 required) |
| 3 | 3F818 | Steering wheel rotation sensor |
| 4 | - | Clockspring screws (2 required) (part of 14A664) |
| 5 | - | Driver air bag module electrical connectors (part of 14A664) |
| 6 | 14A664 | Clockspring (and steering wheel angle sensor tone ring [if equipped]) |
| 7 | - | Clockspring electrical connector (part of 14401) |
