Occupant Classification Sensor: Removal

WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

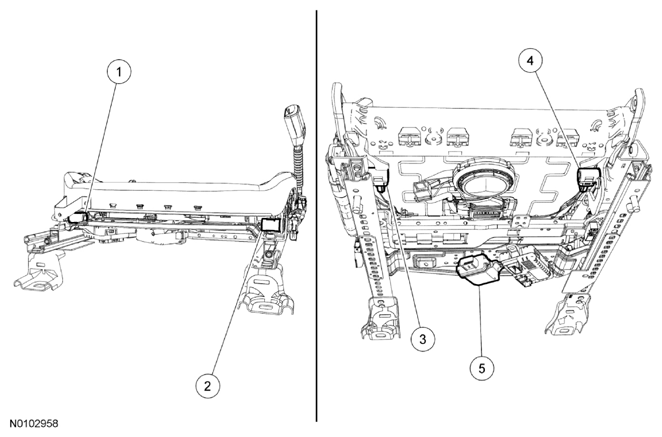

Occupant Classification System (OCS) Weight Sensor Bolt System Identification

Fig 1: Identifying Occupant Classification System Weight Sensor Bolt System Identification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Occupant Classification System (OCS) weight sensor bolt A (part of 61710)
2	-	OCS weight sensor bolt D (part of 61710)
3	-	OCS service kit jumper harness connector glued to the OCSM (part of 632A22)
4	-	OCS service kit jumper harness connector glued to the OCSM (part of 632A22)
5	-	OCS service kit bladder heat staked to the cushion foam pad (part of 632A22)

Occupant Classification System (OCS) Bladder System Identification

NOTE: Power seat track shown in illustration, manual similar.

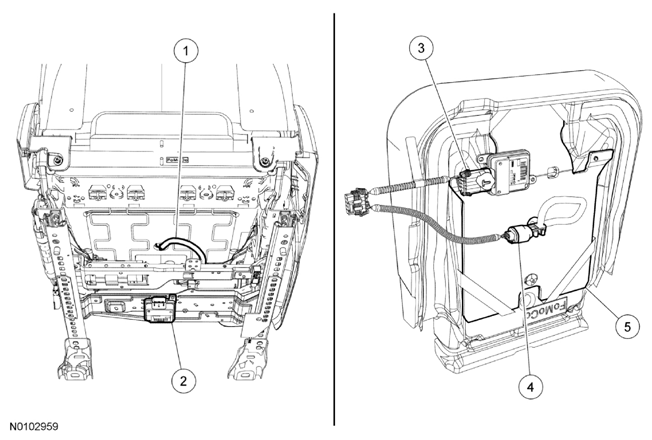

Fig 2: Identifying Occupant Classification System Bladder System Identification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Occupant Classification System (OCS) pressure sensor hose
2	-	Occupant Classification System Module (OCSM)
3	-	OCS service kit jumper harness electrical connector (part of 14B422)
4	-	OCS service kit jumper harness electrical connector
5	-	OCS service kit bladder heat staked to the cushion foam pad (part of 14B422)

Seat with weight sensor bolt Occupant Classification System (OCS) system

NOTE: The Occupant Classification System (OCS) is part of the front passenger seat track assembly and is not serviced separately.

NOTE: To prevent system failure, it is necessary to carry out the Occupant Classification Sensor (OCS) System Reset reset when a front passenger seat cushion is disassembled, a new seat cushion cover installed or an OCS system service kit is installed. A scan tool is used to carry out the OCS system reset.

NOTE: An OCS system service kit has the electrical connector glued to the Occupant Classification System Module (OCSM). It cannot and should not be disconnected or altered.

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

Remove the front passenger seat track. For additional information, refer to the Front Seat Track removal and installation procedure in SEAT SYSTEM - SEATS Article.
Seat with bladder Occupant Classification System (OCS) system
Remove the front passenger seat cushion cover. For additional information, refer to Front Seat Cushion Cover in the Removal and Installation of SEAT SYSTEM - SEATS Article.

NOTE: Power seat track on top, manual below.

Separate the pressure sensor.
- Bend the locking tab down.
- Slide the pressure sensor off of the bracket.
- For an OEM OCS system , disconnect the pressure sensor electrical connector.

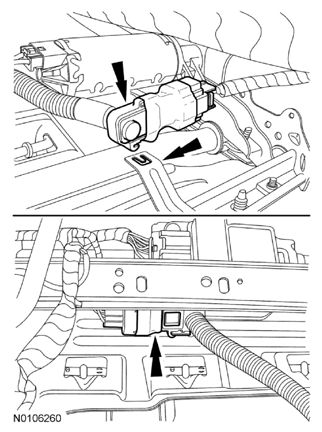

  Fig 3: Locating Pressure Sensor And Locking Tab
  Courtesy of FORD MOTOR CO.

NOTE: Power seat track on top, manual below.

Remove the OCSM.
- For manual seat track, bend the locking tab down.
- Remove the 2 screws.
- For an OEM OCS system , disconnect the OCSM electrical connector.

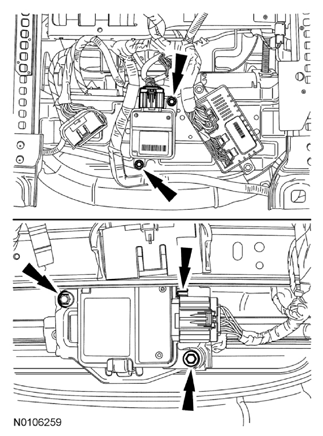

  Fig 4: Locating OCSM, Locking Tab, Screws And OCSM Electrical Connector
  Courtesy of FORD MOTOR CO.
If equipped, disconnect the seat cushion heater mat electrical connector and separate the wire harness retainer.

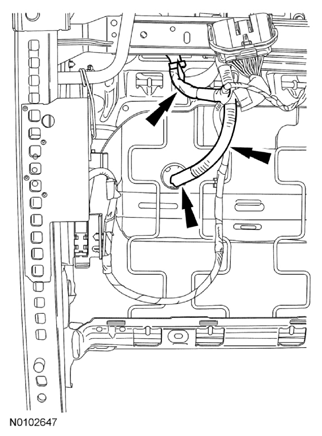

Fig 5: Locating Seat Cushion Heater Mat Electrical Connector And Wire Harness Retainer
Courtesy of FORD MOTOR CO.

NOTE: Note position of the pressure sensor hose routing for installation.

Remove the OCS system from the seat cushion frame.
- Feed the OCS system components out of the opening in the seat cushion frame.
- Remove the seat cushion foam.
- Detach the pin-type retainers and bladder from the seat cushion frame.

  Fig 6: Locating OCS System Components
  Courtesy of FORD MOTOR CO.
