Passenger Air Bag Module: Notes

WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

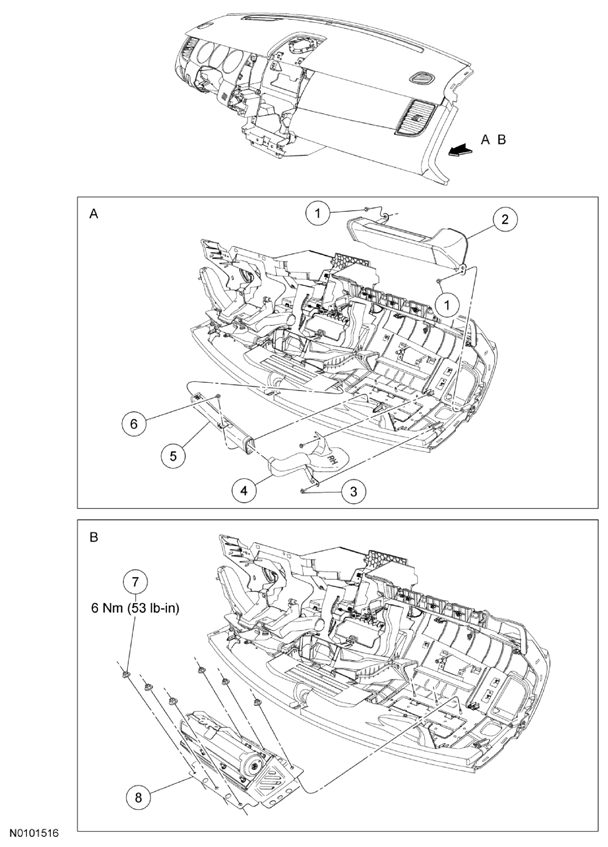

Fig 1: Passenger Air Bag Module, Ventilation Duct And Defroster Duct With Torque Specifications
G07813328Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Ventilation duct screws (2 required)
2 19B680 Ventilation duct
3 - Defroster duct screw (2 required)
4 19B680 Defroster duct
5 19B680 Defroster duct
6 - Defroster duct screw
7 W505253 Passenger air bag module nut (6 required)
8 044A74 Passenger air bag module
