Restraints Control Module (RCM): Installation

WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the RCM.
    2. WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
  2. Install the 3 RCM bolts.
    • Tighten to 12 Nm (106 lb-in).
  3. Make sure the connector position assurance lever is in the full release position before attempting to connect the connector.
    Fig 1: Identifying Connector Position Assurance Lever Full Release Position
    G07813347Courtesy of FORD MOTOR CO.
    4. NOTE: Putting the large Restraints Control Module (RCM) electrical connector into the RCM on an angle can cause bad electrical connections and damage components.
  4. Position the large RCM electrical connector into the RCM.
      NOTE: Do not push the connector to the point where the lever pivots and seats itself. Light pressure is needed to get the connector into position on the Restraints Control Module (RCM) before using the lever to fully seat the connector. Failure to follow these instructions may result in vehicle damage, equipment damage, component damage and/or system failure.
      Fig 2: Locating RCM Electrical Connector
      G07813348Courtesy of FORD MOTOR CO.
    • With the large RCM electrical connector uniformly aligned to the RCM, lightly push in until a subtle, audible click is heard and slight resistance is felt.
  5. Connect the RCM electrical connector.
    • Pivot the connector position assurance lever toward the RCM, drawing the connector in to the RCM.
      • Make sure the thumb tab is engaged to the retainer on the RCM and locked in place.

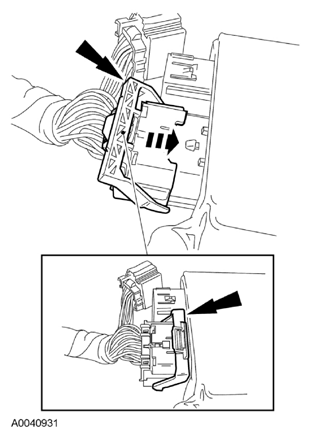

        Fig 3: Locating RCM Electrical Connector And Thumb Tab
        G07813349Courtesy of FORD MOTOR CO.
  6. Connect the small RCM electrical connector.
  7. Install the LH and RH floor console lower trim panels
  8. Install the front seats. For additional information, refer to SEAT SYSTEM - SEATS Article.
  9. Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING  .
