Safety Canopy Module: Notes
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

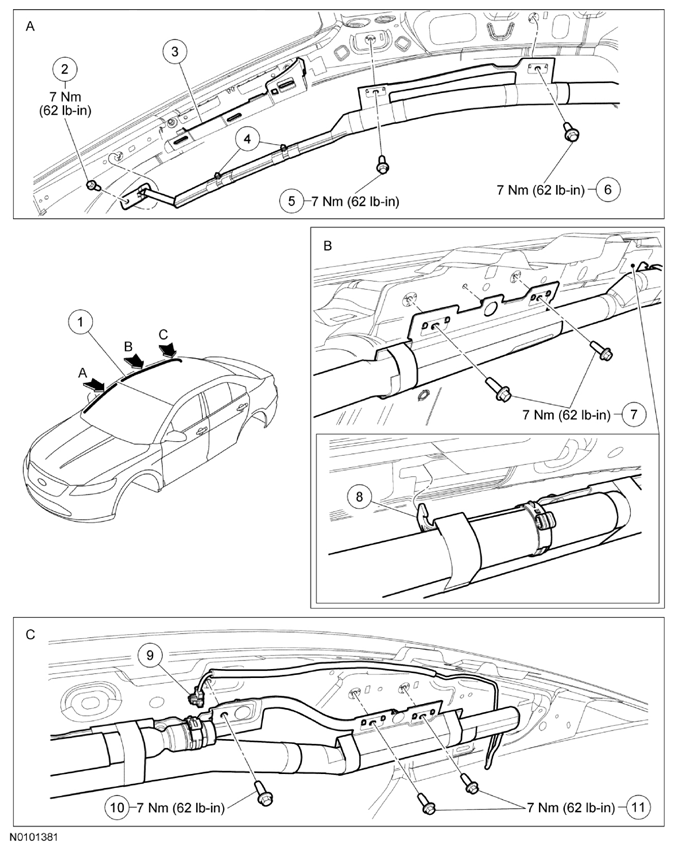

RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/042D95 LH | Safety Canopy® module |
| 2 | W505255 | Safety Canopy® module front tether bolt |
| 3 | 026A52 RH/026A53 LH | Garnish moulding bracket |
| 4 | - | Pin-type retainers (part of 042D94 RH/042D95 LH) |
| 5 | W505255 | Safety Canopy® module bolt (part of 042D94 RH/042D95 LH) |
| 6 | W505255 | Safety Canopy® module bolt (part of 042D94 RH/042D95 LH) |
| 7 | W505255 | Safety Canopy® module bolts (part of 042D94 RH/042D95 LH) |
| 8 | - | T-tab (part of 042D94 RH/042D95 LH) |
| 9 | - | Electrical connector (part of 14A005) |
| 10 | W505255 | Safety Canopy® module bolt (part of 042D94 RH/042D95 LH) |
| 11 | W505255 | Safety Canopy® module bolts (part of 042D94 RH/042D95 LH) |
