Input Shaft Exploded View

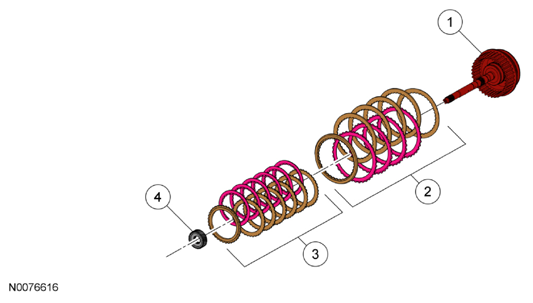

Fig 1: Exploded View Of Input Shaft Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	7G384	Input shaft (part of direct/overdrive clutch assembly)
2	-	Direct clutch
3	-	Overdrive clutch
4	7D063	Center planetary sun gear
