Main Control Cover - 3.7L: Notes

MATERIAL

Item	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	MERCON® LV

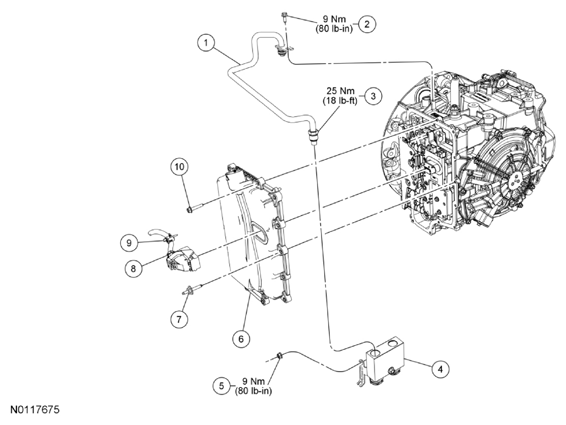

Fig 1: Exploded View Of Main Control Cover Components With Torque Specifications (3.7L)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	7H420	Tube - transmission fluid cooler
2	W711538	Bolt - transmission fluid cooler tube
3	-	Nut - transmission fluid cooler tube (part of 7H420)
4	7H322	Valve - transmission fluid cooler thermal bypass
5	W520101	Nut - transmission fluid cooler thermal bypass valve
6	7G004	Cover - main control
7	W708442	Studbolts - main control cover (3 required)
8	7A488	Connector - transaxle harness
9	14A169	Retainer - transaxle harness
10	7J289	Bolts - main control cover (11 required)
