Transaxle Support Insulator - Anti-Roll, 3.7L: Notes
MATERIAL
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

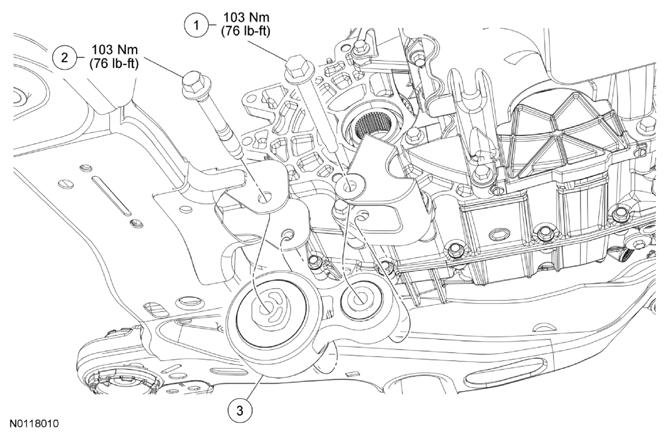

Fig 1: Transaxle Support Insulator Replacement Components With Torque Specifications -- Anti-Roll, 3.7L
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W709128 | Roll restrictor-to-transaxle bracket through bolt |
| 2 | W713156 | Roll restrictor-to-subframe through bolt |
| 3 | 6P082 | Roll restrictor |
