Driver Air Bag Module Connector
›
Driver Air Bag Module Connector End View - C216A
Driver Air Bag Module Connector End View - C216A

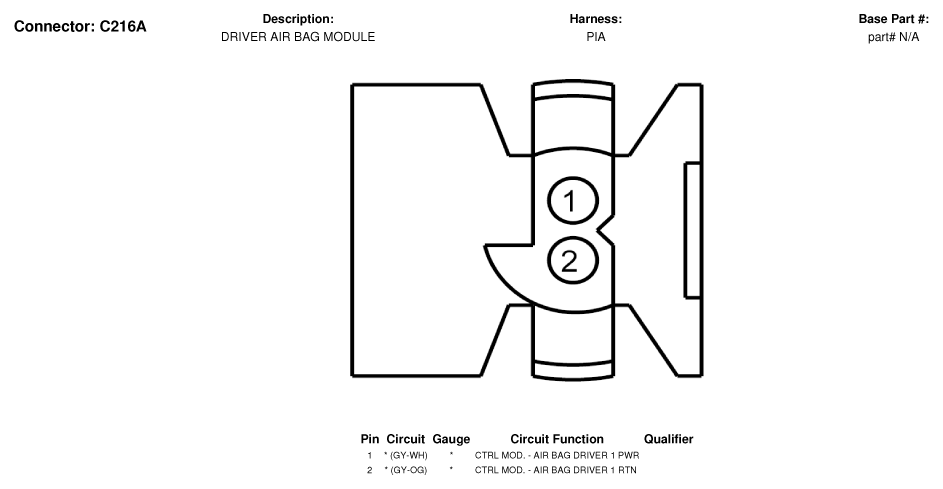

Fig 1: Driver Air Bag Module Connector End View (C216A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
