Audio Digital Signal Processing Module Connector
›
Audio Digital Signal Processing Module Connector End View - C4326A
Audio Digital Signal Processing Module Connector End View - C4326A

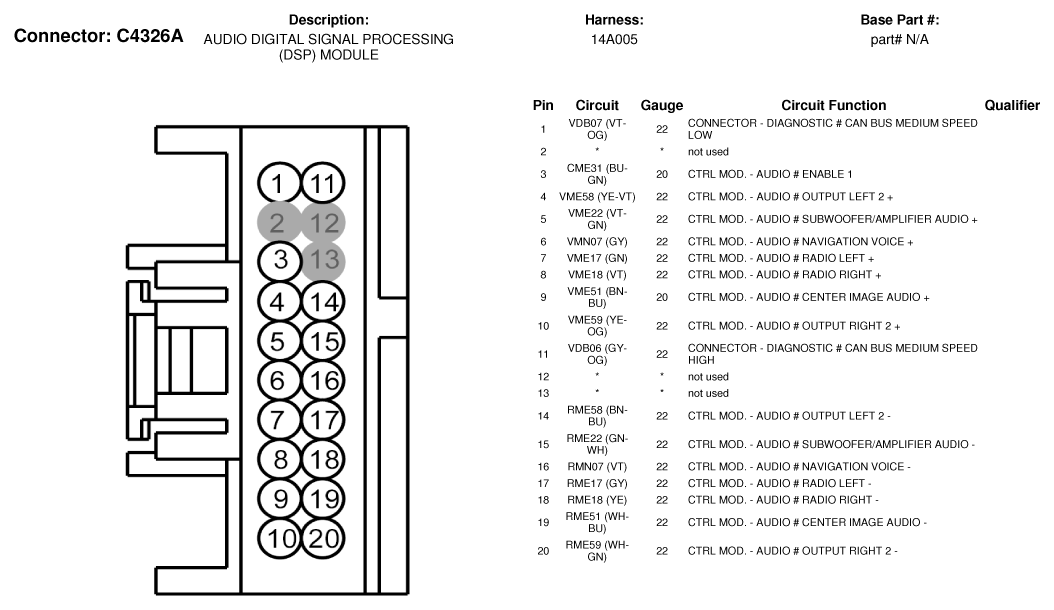

Fig 1: Audio Digital Signal Processing Module Connector End View (C4326A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
