Lincoln
›
2011
›
MKT Base, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector Views
›
Audio Digital Signal Processing Module Connector
›
Audio Digital Signal Processing Module Connector End View - C4326C
Audio Digital Signal Processing Module Connector End View - C4326C

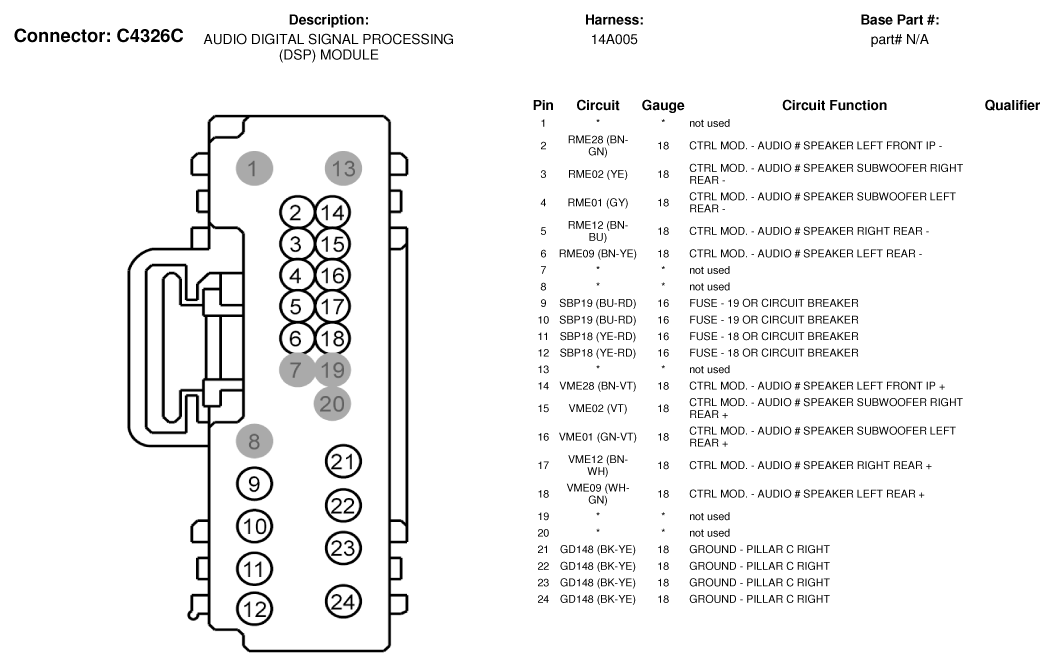

Fig 1: Audio Digital Signal Processing Module Connector End View (C4326C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
