DC/AC Inverter Module Connector
›
DC/AC Inverter Module Connector End View - C4210B
DC/AC Inverter Module Connector End View - C4210B

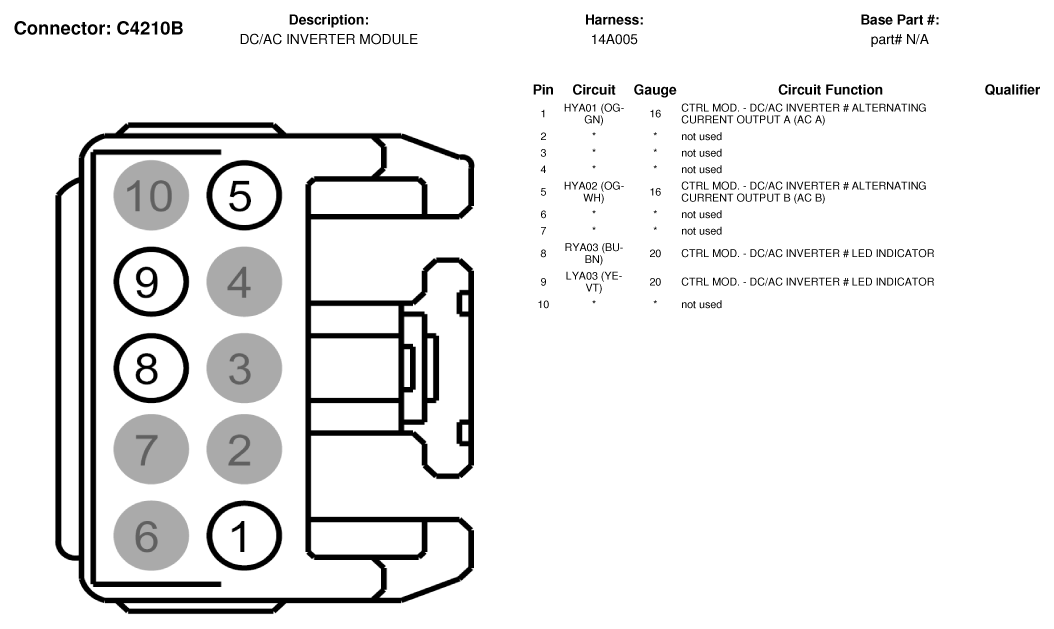

Fig 1: DC/AC Inverter Module Connector End View (C4210B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
