Driver Seat Module Connector End View - C341C

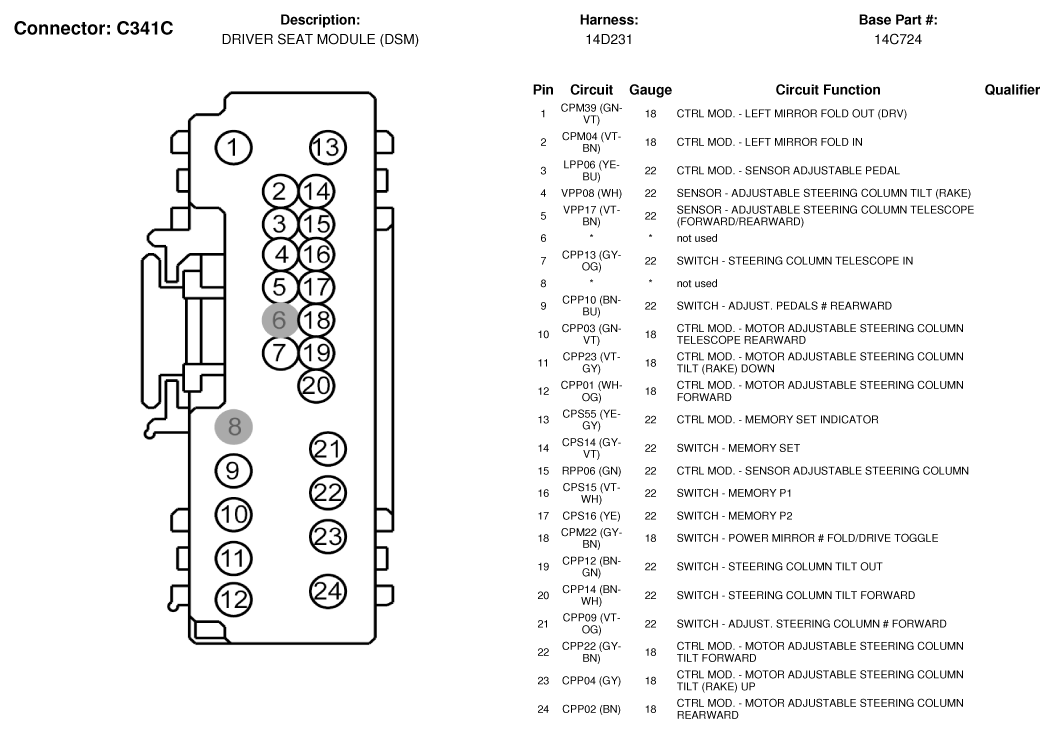

Fig 1: Driver Seat Module Connector End View (C341C)
G07336095Courtesy of FORD MOTOR CO.
