Driver Seat Module Connector End View - C341D

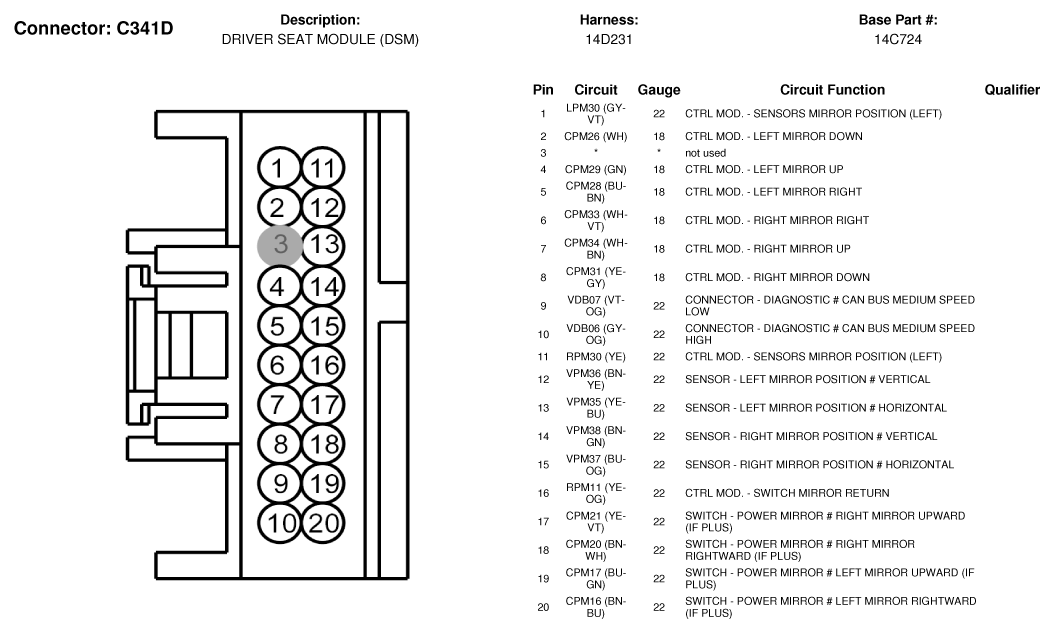

Fig 1: Driver Seat Module Connector End View (C341D)
G07336096Courtesy of FORD MOTOR CO.
