Powertrain Control Module Connector - C1381E

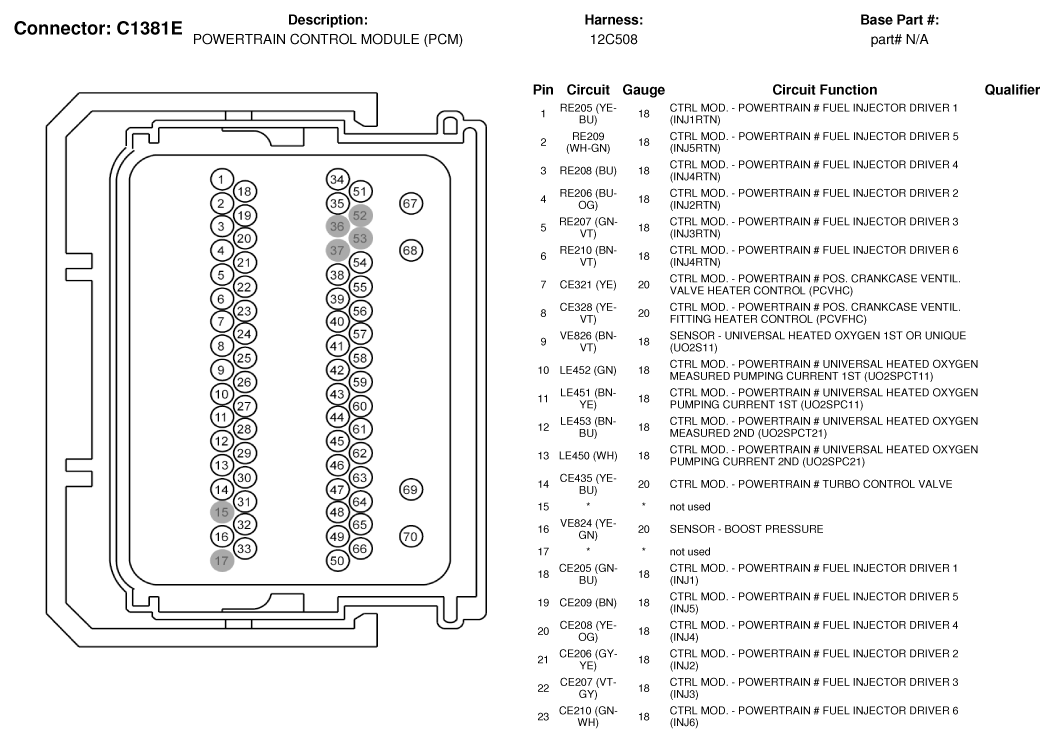

Fig 1: Powertrain Control Module Connector End View (C1381E) (1 Of 3)

Courtesy of FORD MOTOR CO.

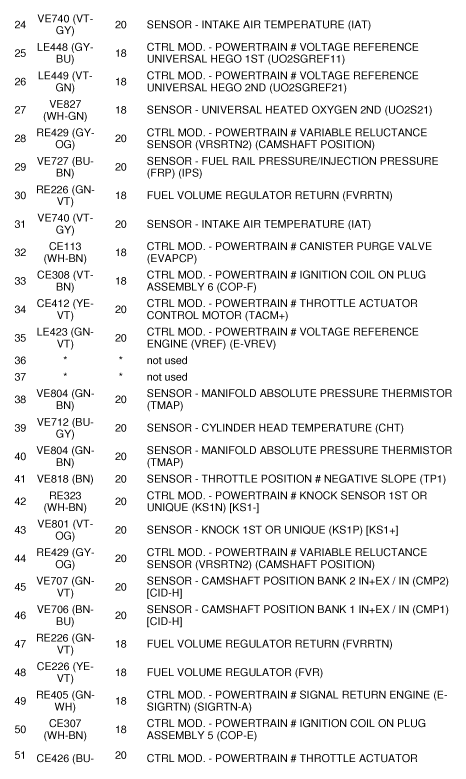

Fig 1: Powertrain Control Module Connector End View (C1381E) (2 Of 3)

Courtesy of FORD MOTOR CO.

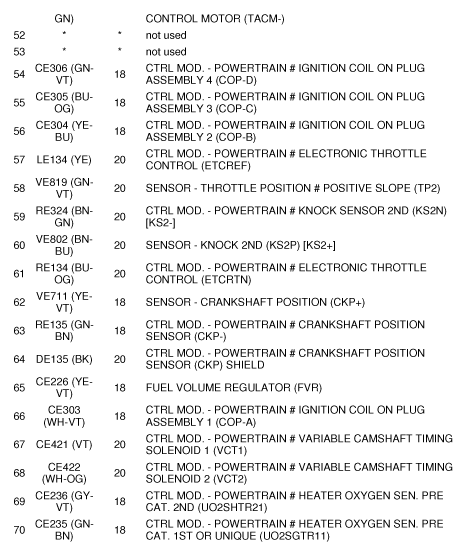

Fig 1: Powertrain Control Module Connector End View (C1381E) (3 Of 3)

Courtesy of FORD MOTOR CO.
