Steering Angle Sensor Module Connector - C2412

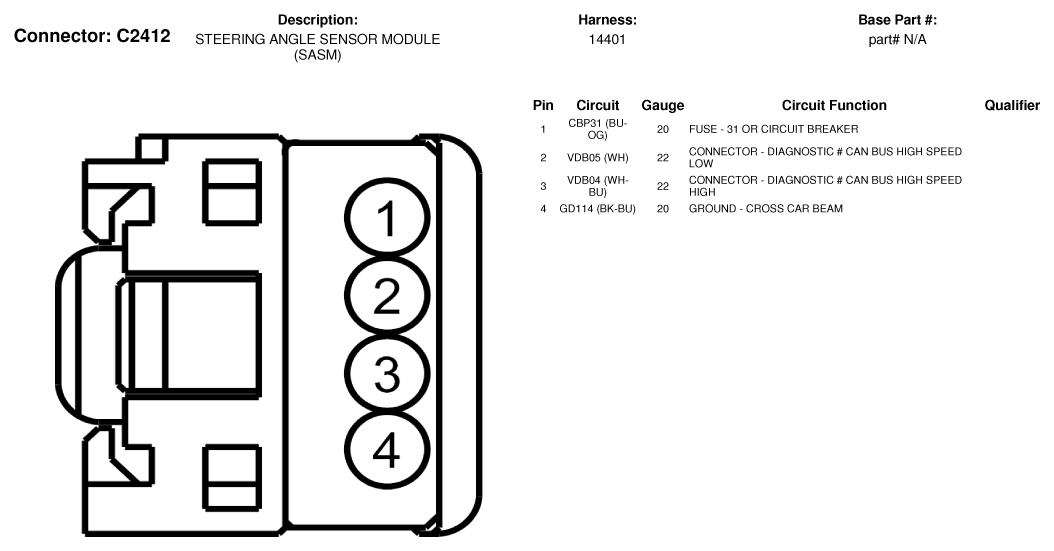

Fig 1: Steering Angle Sensor Module Connector End View (C2412)
G07336276Courtesy of FORD MOTOR CO.
