Instrument Panel Fasteners: Notes

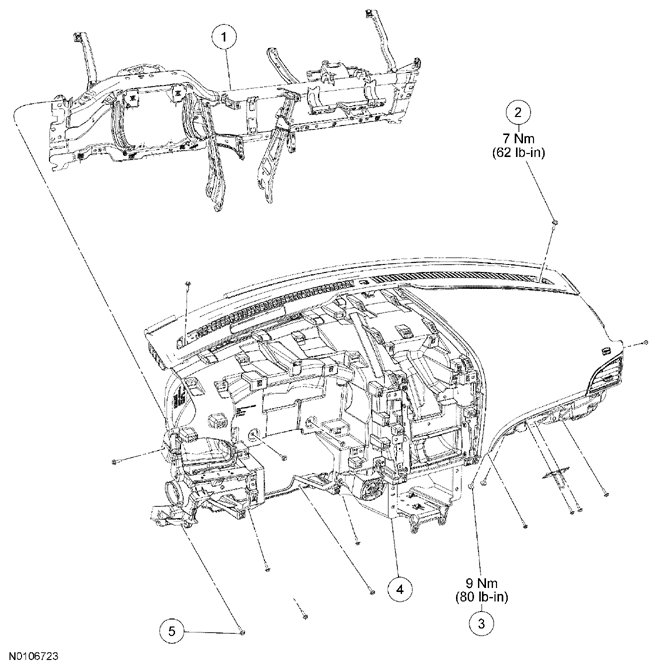

Fig 1: Instrument Panel Fasteners With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	045045	In-vehicle crossbeam
2	N807316	Instrument panel upper bolt (2 required)
3	W706281	Passenger side air bag-to-crossbeam bolt (2 required)
4	04320	Instrument panel upper section
5	W707628	Instrument panel screw (13 required)
