Accelerator Pedal: Notes

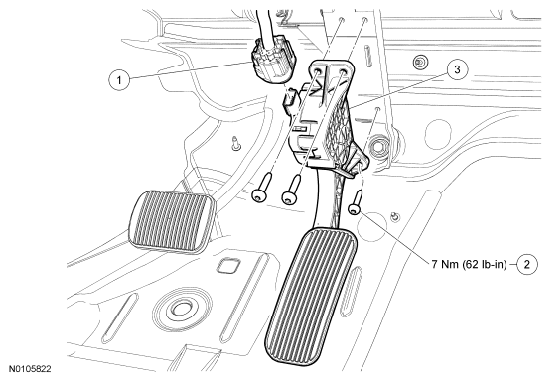

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Accelerator pedal sensor electrical connector
2	W714332	Accelerator pedal and sensor bolt (3 required)
3	9F836	Accelerator pedal and sensor assembly
