Solenoid Body Assembly: Assembly

  1. Install a new solenoid body assembly electrical connector seal.
    Fig 1: Installing Solenoid Body Assembly Electrical Connector Seal
    G07793452Courtesy of FORD MOTOR CO.
    2. NOTE: Do not handle the solenoid body in the lead frame area or by the screens of the solenoid body filter or damage to the solenoid body may occur.
    NOTE: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.
    NOTE: Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transaxle will occur if the filter passages are not clean.

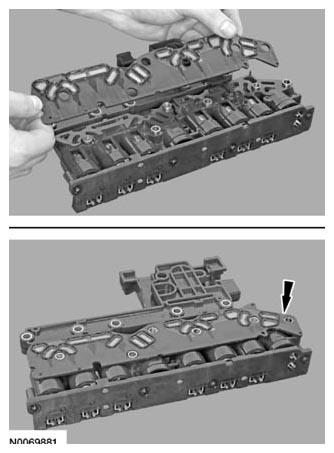

    Fig 2: Installing Solenoid Body Filter Assembly
    G07793453Courtesy of FORD MOTOR CO.
  2. Install a new solenoid body filter assembly by pushing it straight down onto the alignment tabs.
