Solenoid Body Assembly: Notes

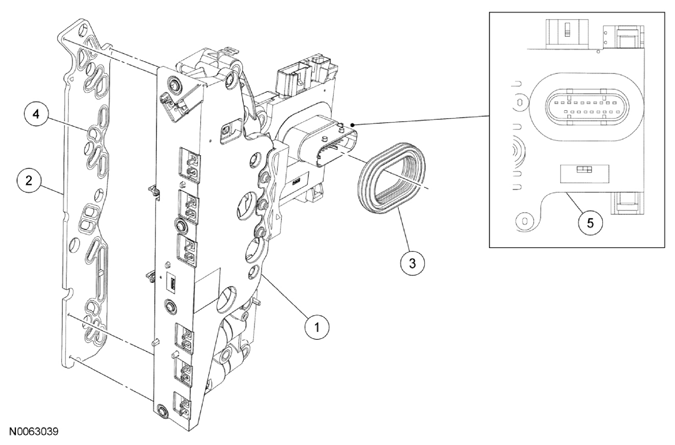

Fig 1: Exploded View Of Solenoid Body Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7Z369	Solenoid body
2	7H200	Solenoid body filter
3	7B329	Seal - solenoid body electrical connector
4	-	Solenoid body filter screen
5	-	lead frame area
