Output Shaft Speed (OSS) Sensor: Notes

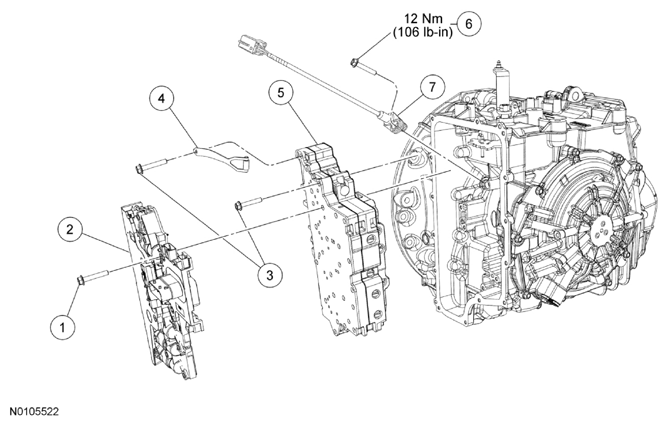

Fig 1: Output Shaft Speed Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7J291	Bolt - solenoid body
2	7Z369	Solenoid body
3	7J291	Bolts - valve body
4	7E332	Manual valve detent spring
5	7A100	Valve body
6	7J283	Output Shaft Speed (OSS) sensor bolt
7	7H103	OSS sensor
