Solenoid Body Assembly: Installation

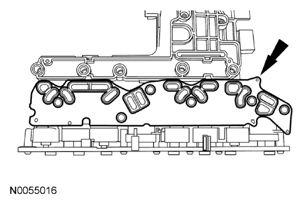

- Install a new solenoid body filter assembly by pushing it straight down on to the alignment tabs.
- Install the solenoid body and the 11 bolts.

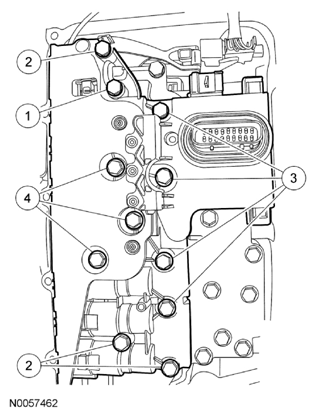

- 42 mm (1.653 in) bolt
- 63 mm (2.48 in) bolts
- 80 mm (3.149 in) bolts
- 95 mm (3.74 in) bolts

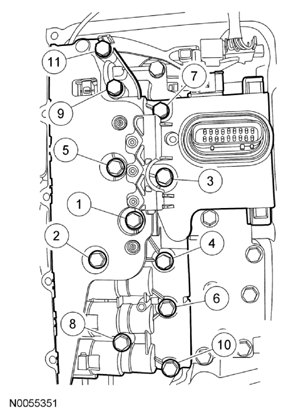

- Tighten the solenoid body bolts in the sequence shown in illustration.
- Tighten to 12 Nm (106 lb-in).
- Route the OSS sensor wiring harness and connect the electrical connector.
- Connect the TR sensor electrical connector.
- Connect the electrical connector.
- Slide the locking tab over.
- Connect the TSS sensor electrical connector.

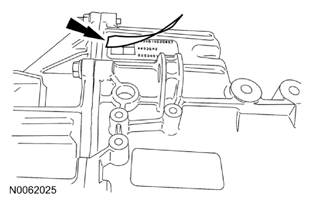

- Wipe the surface of the existing solenoid body strategy tag on top of the transaxle case clean and install the new solenoid body strategy tag (supplied with the solenoid body service kit) over it.
- Install the main control cover.
- For vehicles equipped with a 3.7L engine, refer to MAIN CONTROL COVER - 3.7L .
- For vehicles equipped with a 3.5L GTDI engine, refer to MAIN CONTROL COVER - 3.5L GTDI .
- Download a new solenoid body strategy to the PCM. For additional information, refer to SOLENOID BODY STRATEGY .
NOTE:
Do not handle the solenoid body in the lead frame area or by the screens of the solenoid body filter or damage to the solenoid body may occur.
NOTE:
Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.
NOTE:
Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transaxle will occur if the filter passages are not clean.
NOTE:
Make sure not to pinch the Turbine Shaft Speed (TSS), Output Shaft Speed (OSS) or Transmission Range (TR) sensor wiring harnesses when installing the solenoid body. Damage to the wiring harness will occur.
NOTE:
Install the different length bolts in the locations noted during disassembly.
