Final Drive Gearset Exploded View

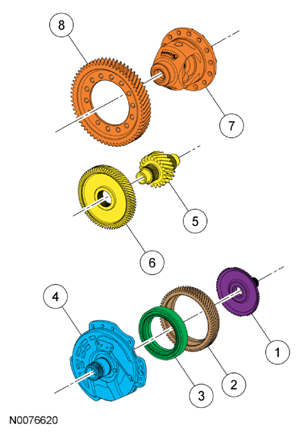

Fig 1: Exploded View Of Final Drive Gearset

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7B067	Front planetary carrier hub
2	7F342	Transfer shaft drive gear
3	7A452	Transfer shaft drive gear bearing
4	7F363	Stator support assembly
5	7H346	Transfer shaft
6	7H349	Transfer gear
7	4207	Differential assembly
8	7F343	Differential ring gear
