Left-Rear Wheel Speed Sensor

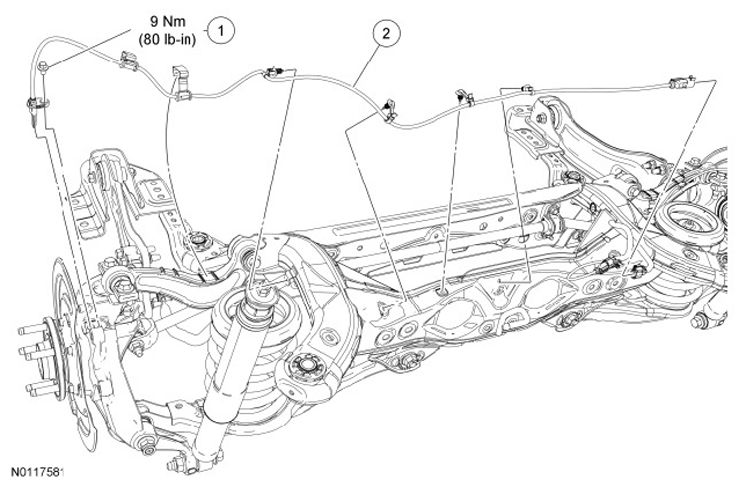

Fig 1: Left-Rear Wheel Speed Sensor And Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

REAR WHEEL SPEED SENSOR PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W500010	Wheel speed sensor bolt
2	2C190	Wheel speed sensor
