Body Control Module Connector End View - C2280C
Body Control Module Connector End View - C2280C

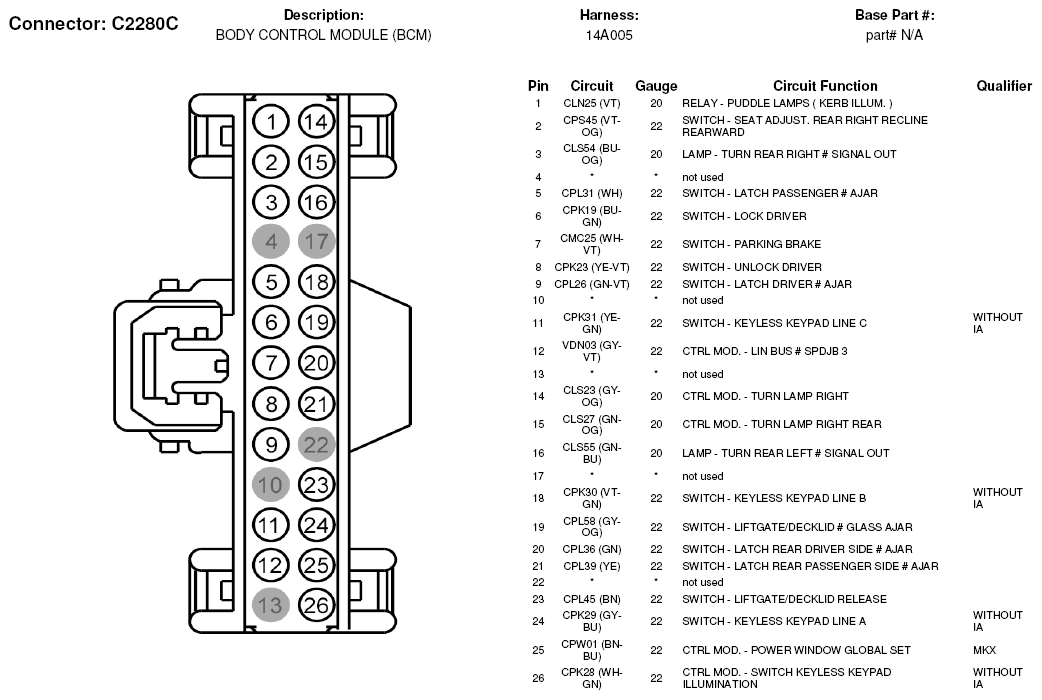

Fig 1: Body Control Module Connector End View (C2280C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
