Body Control Module Connector End View - C2280D
Body Control Module Connector End View - C2280D

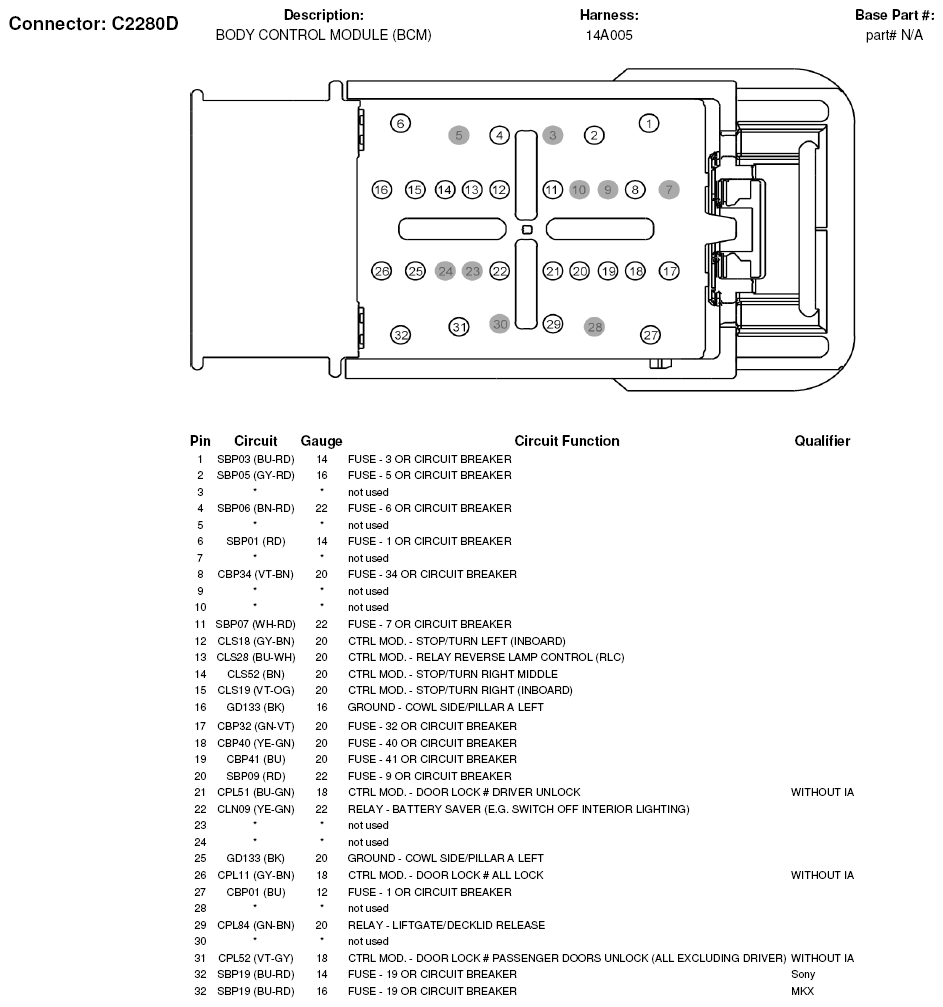

Fig 1: Body Control Module Connector End View (C2280D)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
