Body Control Module Connector End View - C2280F

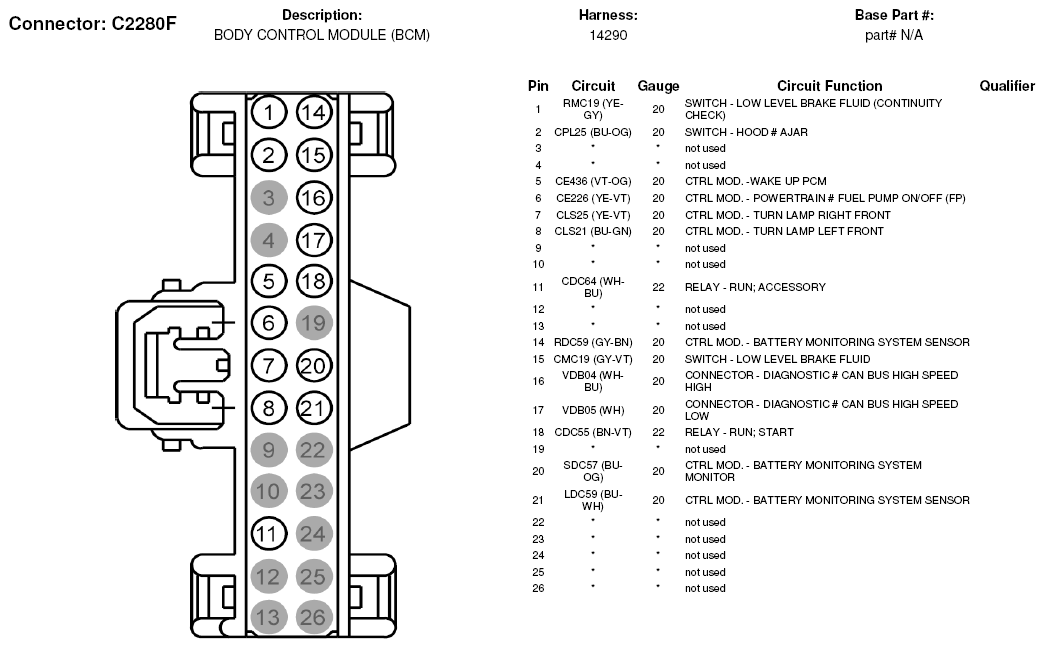

Fig 1: Body Control Module Connector End View (C2280F)
G07327201Courtesy of FORD MOTOR CO.
