DATC HVAC Module Connector End View - C228C
DATC HVAC Module Connector End View - C228C

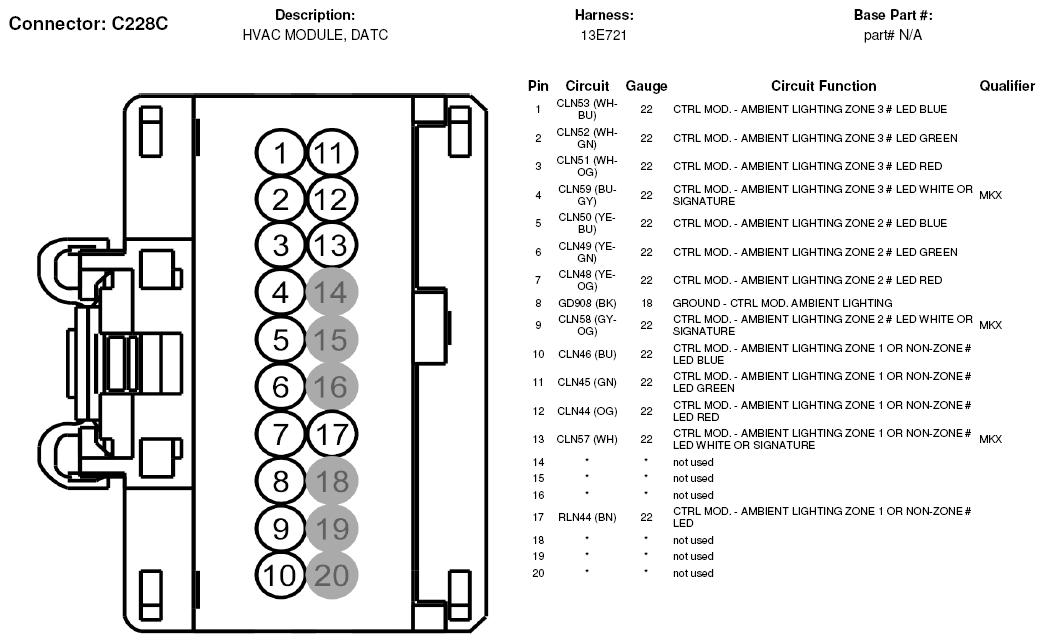

Fig 1: DATC HVAC Module Connector End View (C228C)
Courtesy of FORD MOTOR CO.
