Driver Seat Module Connector End View - C3299B

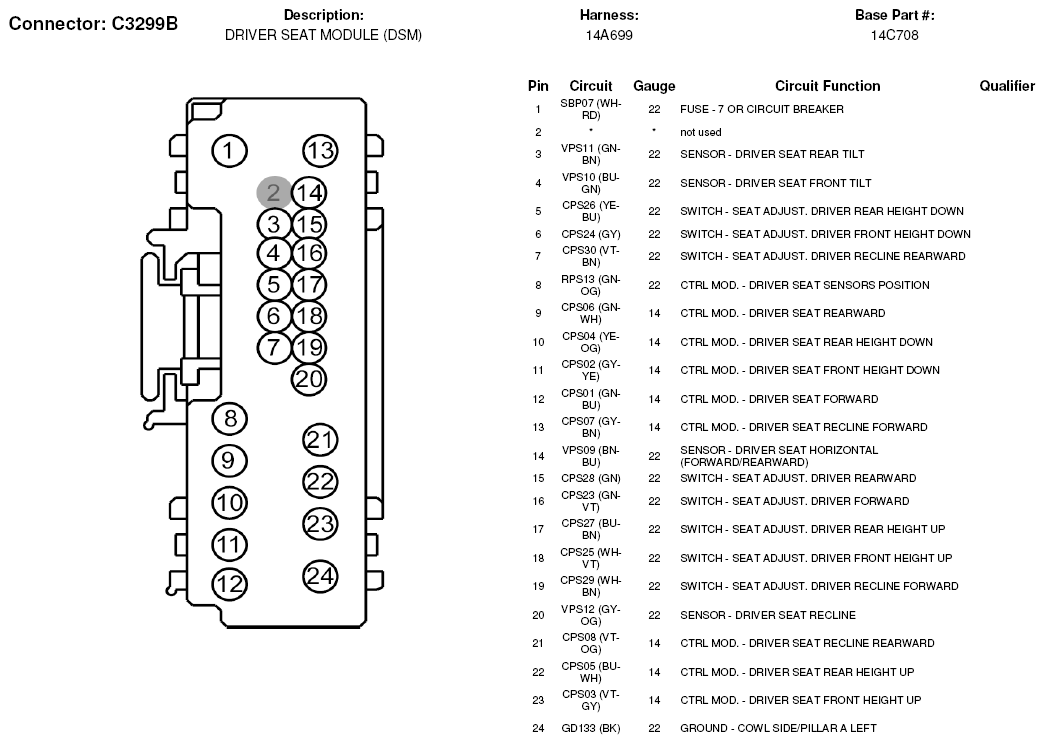

Fig 1: Driver Seat Module Connector End View (C3299B)
G07327256Courtesy of FORD MOTOR CO.
