Dual Climate Controlled Seat Module Connector End View - C3036A

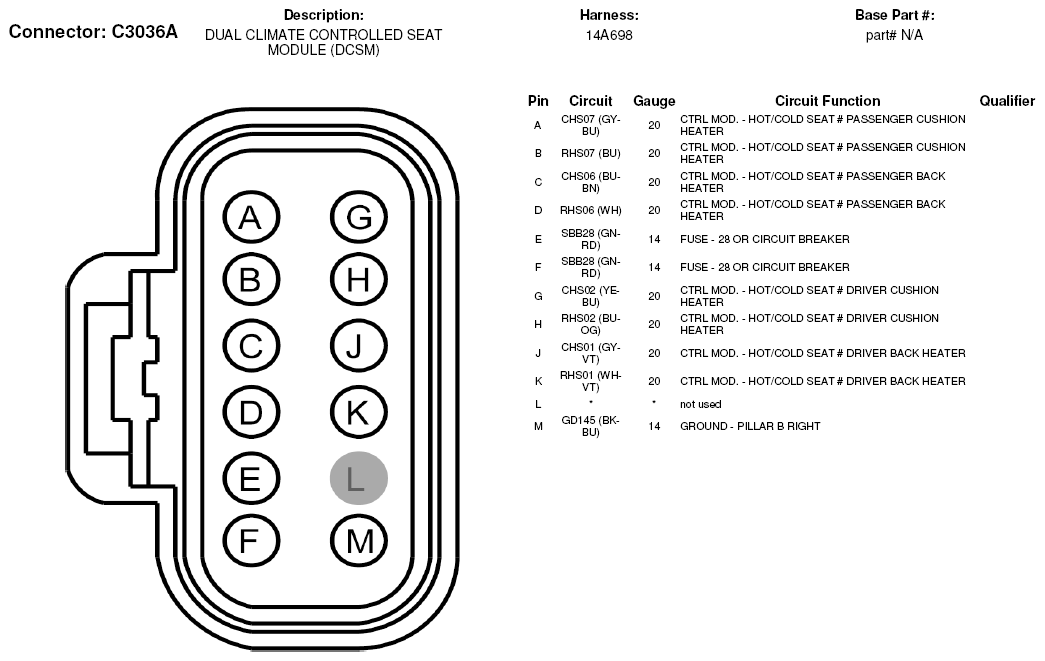

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3036A)
G07327227Courtesy of FORD MOTOR CO.
