Dual Climate Controlled Seat Module Connector End View - C3036B

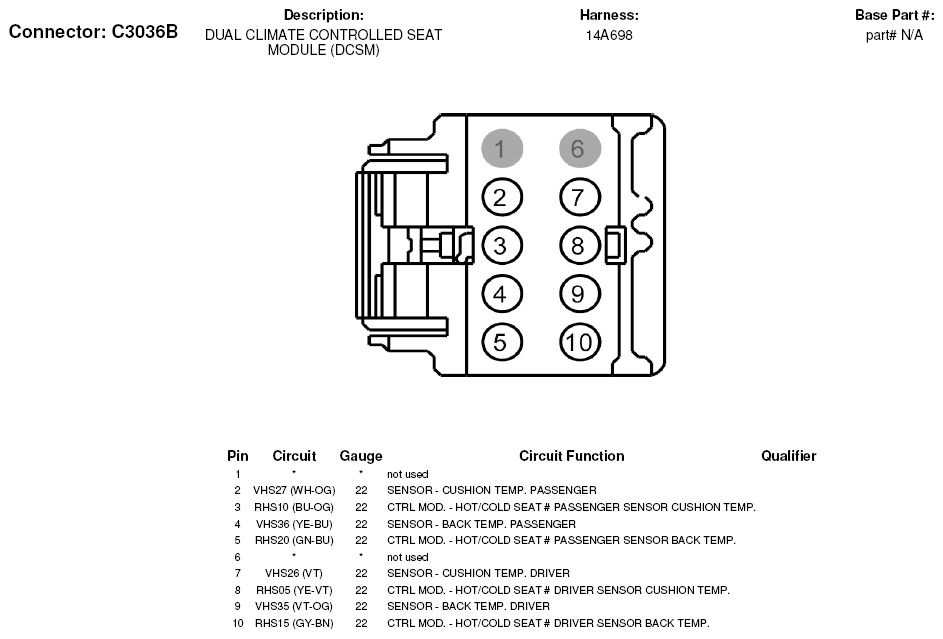

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3036B)
G07327228Courtesy of FORD MOTOR CO.
