Generator Current Sensor Connector - C1645
Generator Current Sensor Connector - C1645

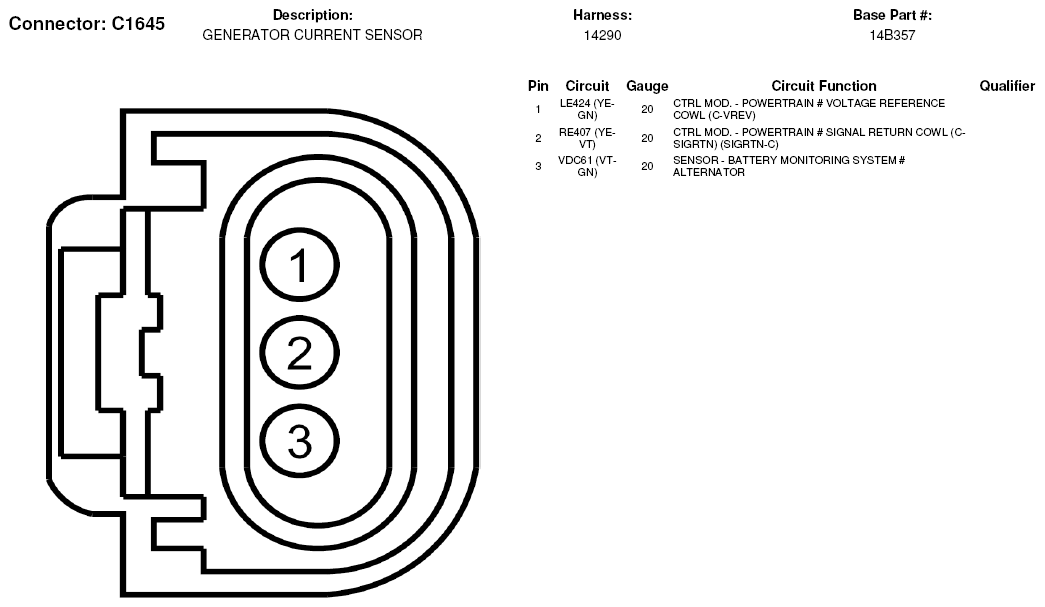

Fig 1: Generator Current Sensor Connector End View (C1645)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
